Lightning Audio LA-1600MD

Sweet amp, sweeter performance! The Lightning Audio 1600MD is a 1,600 Watt Mono Digital amplifier designed for 1-Ohm woofer loads like four 4-Ohm woofers wired in parallel. The amplifier features large power and speaker connectors to handle high current demands and large top mounted command center with controls for slave/master settings, input level, lowpass crossover, subsonic and bass boost. The top mounted power and protect LEDs are also great for quick diagnostic checks.

Features
RCA Pass-Thru Outputs
12dB Bass Boost
Adjustble 12dB/octave Crossover
Subsonic Filter
Input Mode Switch
Built-In Fusing
Remote Bass Control

Max Power
- 800 Watts x 1 @ 4-Ohms
- 1,200 Watts x 1 @ 2-Ohms
- 1,600 Watts x 1 @ 1-Ohm
Bridgeable: No
Crossover Controls
- 12dB/octave LP 40Hz to 150Hz
- ubsonic: 15Hz to 55Hz
Tone Controls: Bass Boost: 0dB to +12dB @ 45Hz
Signal Input
- Low-Level: 2 RCA (200mV to 6V)
- Mode Switch: Master Output/Slave
- Input
Signal Output: Low-Level: (2) RCA (Slave in/out)

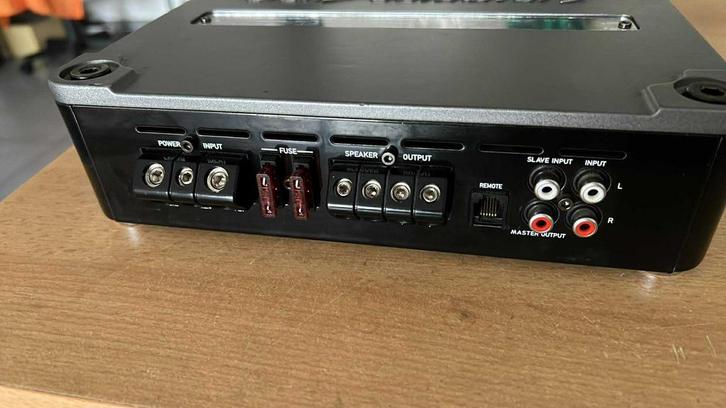

Power Input Connector: Block connector w/ set screw
Power Wire Gauge: 4 AWG
Speaker Output Connector: Block connector w/ set screw
Speaker Wire Gauge: 8 AWG
Heat Sink Type: Cast aluminum
Cooling: Convection
Remote Control
- Bass Boost (included)
- With integral Power LED & Protect LED
Visual Indicators
- Power
- Protect
Circuit Topology Class: Class D
Frequency Response: 20Hz to 500Hz
Signal-to-Noise Ratio: >95 dB
Shipping Weight: 10 Lbs. (4.5 Kg.)
D...
