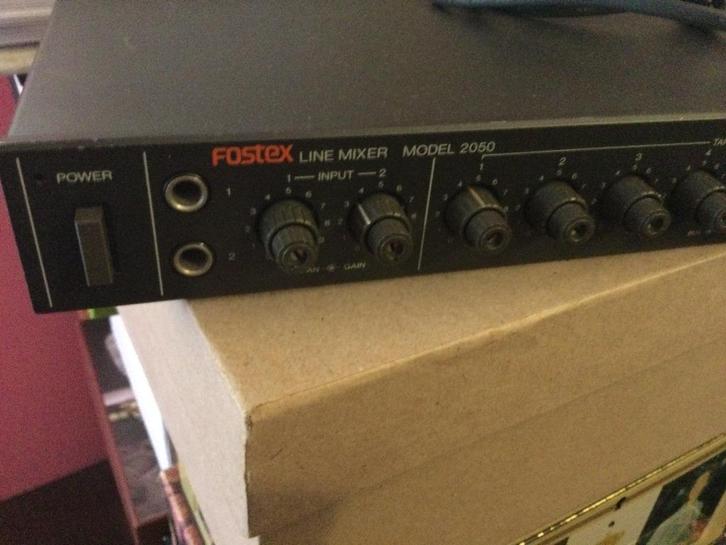

Fostex 2050 audio line mixer

Fostex 2050 line mixer - perfect werkend -  manuals te vinden op het internet.

THE BASIC LAYOUT
You'll find eight line level inputs (TAPE/
EFFECTS), each with its own foldback.
The foldback lers you re-route the input
signal to another device as well as sending
it through the 20)0's mixing circuitry.
Each input chain has its own gain and pan
controls.
The input signals are mixed together and
then available as a stereo output having
two foldbacks each.
The arrangement lets you use the 2050
as a sub mixer for a multitrack recorder,
or as your extra cue and monitor mixer.
Your own needs will dictate its final duties.
Whether you're rehearsing, recording, or
performing, you'll eventually want to plug
something into your system for a quick
check or fast audition. Although input
jacks 1 and 2 are the main program inputs
as a keyboard mixer, they can be used as a
supplement or extra inputs to the 8
TAPE/EFFECTS channels. Each channel
of the input jacks on the front panel (for
1/4" phone plugs) and the rear panel (for
standard phono plugs), includes is own
gain and pan controls.
The front panel jacks have priority so that
even if you have something connected to
the back, you will override those signals
when you plug something into the front.
Without repatching! The entire set-up
saves time and energy, while it lets you
become more responsive to immediate needs.
