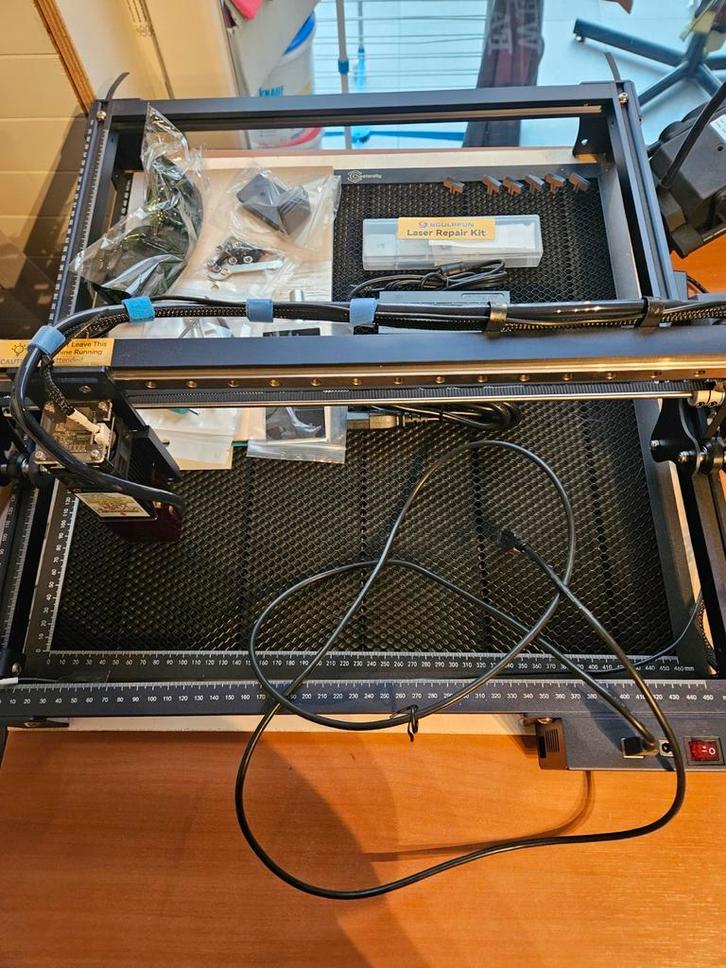

Sculpfun S30 laser graveerder

5.5W laser machine met air assist, honeycomb, micro switches end stop inbegrepen.
Splitnernieuwe laser met honingraadeind switchen

NOOIT GEBRUIKT

Ruilen met opleg tegen portable XTOOL F1 of Laserpecker laser pecker

Evt ruilen met iets anders
Niet gratis

Main Features :
1. Automatically controlled air assist system: The traditional adapter air assist will always be turned on and cannot be controlled during engraving, and the engraved pattern will be smoked into a fuzzy fog. The S30 series is equipped with an airassist 32-bit motherboard and a control-type air pump, which can intelligently control the air-assist switch during engraving through the LightBurn software M8 button, this makes the engraving and cutting very clean, and is very suitable for the manufacture of exquisite gifts.

2. Replaceable protective lens: S30 series laser adopts innovative replaceable lens, which greatly improves the service life of the laser, which is more than 10 times longer than other general lasers. When the lens is damaged or after long-term use, the lens can be replaced to restore the cutting power. A free lens is included with the purchase, more lens can be easily purchased from SCULPFUN.

3. Expandable engraving area on both XY axes: The S30 series adopts an innovative XY axis expandable design, the original engraving area is about 380x385 mm, but you can purchase a Y-axis expansion kit to expand the engraving area to 935x400mm; purchase an XY-axis expansion kit to upgrade Up to 935x905mm engraving area, which can help you better handle large area engraving or cutting work.

4. Industrial-grade cutting accuracy: S30 series adopts extremely solid and high-precision linear slide rail X-axis, making it reach industrial-grade engraving accuracy. When comparing small engraving details, the S30 series does not have the wavy pattern that appears in ordinary engraving machines.

5. Detachable laser eye shield: The S30 series is equipped with a detachable eye shield, which will not dazzle even without glasses. Also if you don't need it, you can easily disassemble it.

6. Safety design: The presented A4 size steel pad can well protect the table from laser damage. Isolate fire hazards. There is a very safe and eye-catching power switch on the machine, you can directly and quickly turn off the power in an emergency.

Machine InformationEngraving accuracy: 0.005mm
Machine power: about 60W

Type: mainboard-controlled air pump, voltage 12V,
flow 30L/min
Air hose inner diameter: 7.5mm
Laser Information
Diode laser output power: 5W (note that this is light energy not electrical energy)
Focusing method: fixed focus column + sliding device
Laser protection cover:
Equipped with a detachable laser protection cover to protect the eyes.
You can adjust it up and down, or remove the goggles.

Sturdy and durable frameMade of high-strength aluminum alloy, it can withstand up to 50KG weight without damage, very durable. The frame can be used for a long time and maintain high precision, when the machine needs to be upgraded, only the latest laser needs to be upgraded.

Built-in high pressure air assist nozzleGreatly improve the cutting efficiency, the cutting speed is more than 5 times faster than airless. The powerful airflow blows the residue away, making the cut surface very clean.
Right-angle measuring rulerThere are precise scale lines on the X-axis and Y-axis to form a right-angle measuring ruler, which is convenient for you to quickly measure the size of the engraved object. The 380mm*385mm large-area engraving range can meet your various engraving needs.

Product ModelSCULPFUN S30Diode laser output power5W (note that this is light energy not electrical energy)Laser focus0.06x0.06mmLaser wavelength455±5nmFocusing methodfixed focus column + sliding deviceLaser protection coverEquipped with a detachable laser protection cover to protect the eyes. You can adjust it up and down, or remove the goggles.Engraving accuracy0.005mmEngraving area sizethe standard version is 410*400mm, which can be expanded to 935x400mm or 935x905mmMachine powerabout 60WAir pump typemainboard-controlled air pump, voltage 12V, flow 30L/minAir hose inner diameter7.5mmMotherboard32-bit air-assisted motherboard, reserve Bluetooth, SD card offline printing function. (Upgrade Kit sold separately)Engraving materialall kinds of wood (including walnut, cherry and other high-density wood), MDF, zigzag, cardboard, plastic, leather, PCB board, aluminum oxide, 304 stainless steel, ceramic, dark stoneCutting materialall kinds of wood (including walnut, cherry and other high-density wood), MDF, acrylic board, cardboard, non-woven, bamboo, leather, some plastic boards, PCB boardsOperating softwareLightBurn (with air assist function M8), LaserGRBL, LightBurn, Benbox, GrblController, LiteFire, support Windows system, support MAC system. Supported file formats NC, BMP, JPG, PNG, DXF and other image formats.Data transmission methodUSB connection or Bluetooth wireless connectionPower Input12V 5APacking weight6.7kgPacking size62.3*24*22.5cmCertificationCE FCC RoHS FDA ICE certification
