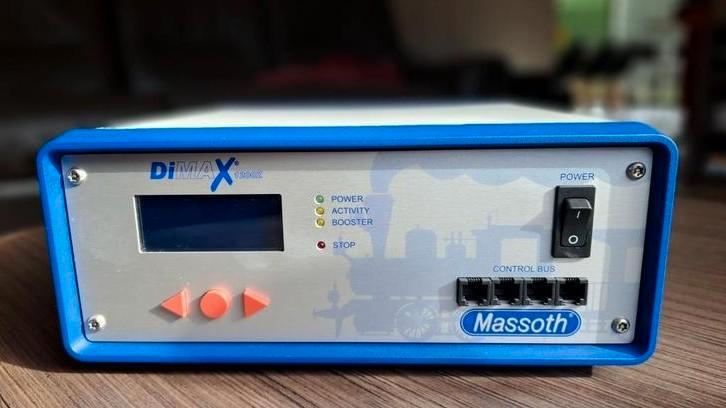

Massoth 1200Z digitale centrale voor treinbaan van oa LGB, Piko, ...
Levert 4, 7 of 12 ampère. Ingebouwde voeding. In hele mooie staat.
Bij voorkeur af te halen (Brugge) maar kan ook verzonden worden. Kosten en risico koper.

Er komen ook nog 2 Piko-navigators te koop (identiek aan de Massoth´s).

Reden verkoop : overstap naar Marklin CS3.

Specificaties :

The DiMAX® 1200Z Central Station is the optimum choice for Garden Railroaders. It is the best combination of a powerful 12 Amps driving current, high safety standards and up to date high end technology. Based on the NMRA Standard the DiMAX® 1200Z Central Station controls Locomotives
equipped with decoders of all major manufacturers. A unique feature is the ability to produce digital and analog signals which enables the DiMAX® 1200Z to operate locomotives equipped with older sound modules. A conversion of old models is therefore not necessary.

- Max 12 Amps Driving Current (adjustable to 4, 7 and 12 Amps)
- Regular Supply Voltage 230V AC
- Additional Supply Voltage 16 V to 24 V DC or 12 V to 18 V AC
- Separate Programming Outlet
- Voltage Limitation (Driving Voltage limited to 24 V DC)
- Adjustable Turn Off Time in case of short circuit (between 0.1 and 0.8 sec)
- Integrated Fan (Temperature Controlled)
- LCD Display (White Letters with Blue Background Lighting)
- Compatible to NMRA DCC
- Compatible to LGB® MTS
- Parallel and Serial Data Processing
- Booster Interface
- PC Interface (Protocol available for free)
- Track Voltage Adjustment (only with new Hardware)

System Properties:
- 10239 Locomotive Addresses
- 14/28/128 Speed Steps
- 2048 Switch Addresses
- 2048 Feed Back Addresses
- Data Base of 128 Preconfigured Locomotives (Input with handheld Controller)
- 32 Locomotives simultaneously controllable (other systems do 8 or 12 Locos)
- Automatic Function without PC
(using Feedback Interface and Train Detection Module)
- Write CV (direct/indirect)
- Read CV
- Register Programming
- PoM (Program on Main / Programming on Track)
