Kenmerken
Conditie
Nieuw
Beschrijving

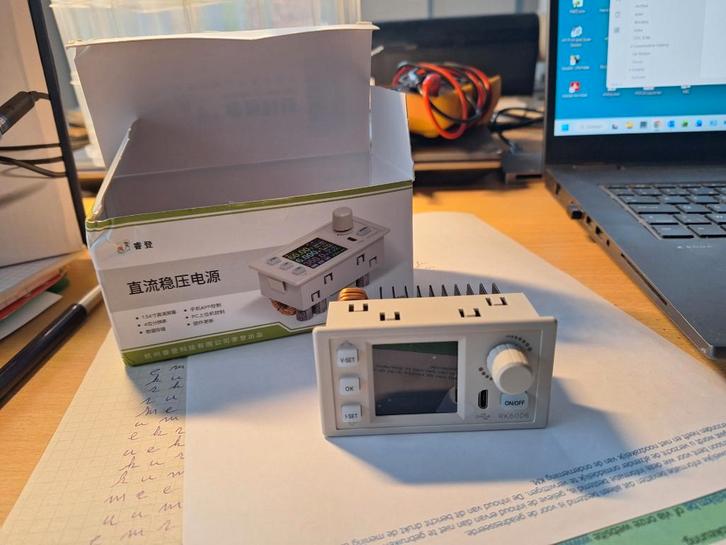

DC voeding RIDEN.
1.1 Technical Parameter
Model RK6006
Input voltage range 12-68.00V
Output voltage range 0-60.00V
Output current range 0-6.000A
Output power range 0-360.0W
Input voltage measurement resolution 0.01V
Output voltage setting measurement resolution 0.01V
Output current setting measurement resolution 0.001A
Input voltage measurement accuracy ±(1%+5 digits)
Output voltage accuracy between setting and
measurement
±(0.3%+3 digits)
Output current accuracy between setting and
measurement
±(0.5%+5 digits)
Output ripple typical 100mV VPP①
Working temperature range -10℃~40℃
External sensor Temperature detection range: -10℃~100℃/0℉~200℉
External sensor Temperature detection
accuracy:
±3℃/±6℉
External sensor parameter 10K NTC B3950
Constant voltage mode response time 2ms（0.1A-5A load）
Constant voltage mode load regulation ±(0.1%+2 digits)
Constant current mode load regulation ±(0.1%+3 digits)
Capacity measurement range 0-9999.99Ah
Energy measurement range 0-9999.99Wh
Capacity/Energy reading Error ±2％
Max output voltage （input voltage÷1.1）-1②
External cooling fan start condition
Output current>5A or
System temperature>65℃
1.1 Technical Parameter
Model RK6006
Input voltage range 12-68.00V
Output voltage range 0-60.00V
Output current range 0-6.000A
Output power range 0-360.0W
Input voltage measurement resolution 0.01V
Output voltage setting measurement resolution 0.01V
Output current setting measurement resolution 0.001A
Input voltage measurement accuracy ±(1%+5 digits)
Output voltage accuracy between setting and
measurement
±(0.3%+3 digits)
Output current accuracy between setting and
measurement
±(0.5%+5 digits)
Output ripple typical 100mV VPP①
Working temperature range -10℃~40℃
External sensor Temperature detection range: -10℃~100℃/0℉~200℉
External sensor Temperature detection
accuracy:
±3℃/±6℉
External sensor parameter 10K NTC B3950
Constant voltage mode response time 2ms（0.1A-5A load）
Constant voltage mode load regulation ±(0.1%+2 digits)
Constant current mode load regulation ±(0.1%+3 digits)
Capacity measurement range 0-9999.99Ah
Energy measurement range 0-9999.99Wh
Capacity/Energy reading Error ±2％
Max output voltage （input voltage÷1.1）-1②
External cooling fan start condition
Output current>5A or
System temperature>65℃
...
...
...
...
...
...
...
...
...
...
...
...
