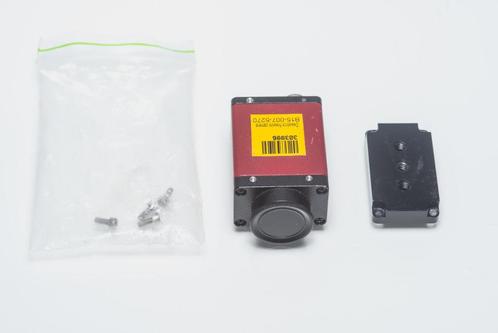

Dewetron Marlin F033C IRF Color CCD - Allied Vision Tech.

Industriele camera, in goede werkende staat.


The Marlin F-033C is equipped with a sensitive SONY CCD sensor.
It runs at 73.06 fps (full resolution, Format_7). Higher frame rates can be reached by a smaller AOI and binning.
Options

• Various IR cut/pass filter, CS-Mount
• Angled head, lateral cable exit, white medical housing

Marlin cameras are equipped with many useful real-time image pre-processing functions. They are performed by the FPGA inside the camera – with no additional CPU load on the host, so that an inexpensive system is sufficient.

• Programmable LUT, white balance, hue, saturation
• Debayering
• Gain
• Auto/manual
• Manual gain control: 0 – 24 dB

• Exposure
• Auto/manual
• Exposure time: 32 µs – 67 s

• Color correction
• Shading correction
• Sub-sampling, 2x binning (b/w)
• AOI (with speed increase)
• Sequence mode – changes the image settings on the fly
• Image mirror
• Deferred image transport
• SIS (secure image signature, time stamp for trigger, frame count etc.)
• Storable user settings

With its modular and flexible design and the real-time pre-processing functions, this Marlin camera fits for many applications:

• Machine vision
• Quality control
• Semiconductor inspection
• Industrial inspection
