Kenmerken
Conditie
Nieuw
Beschrijving

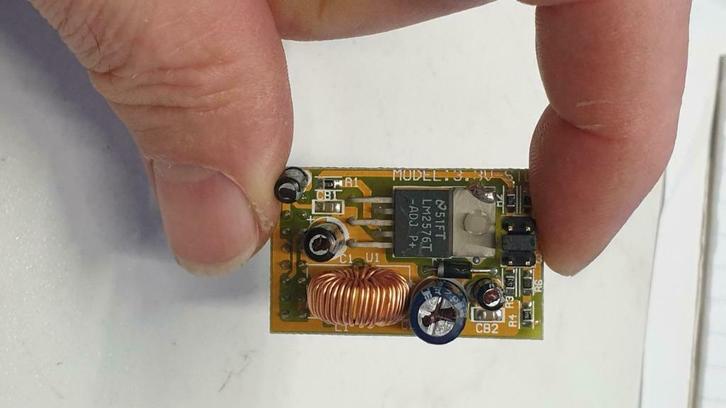

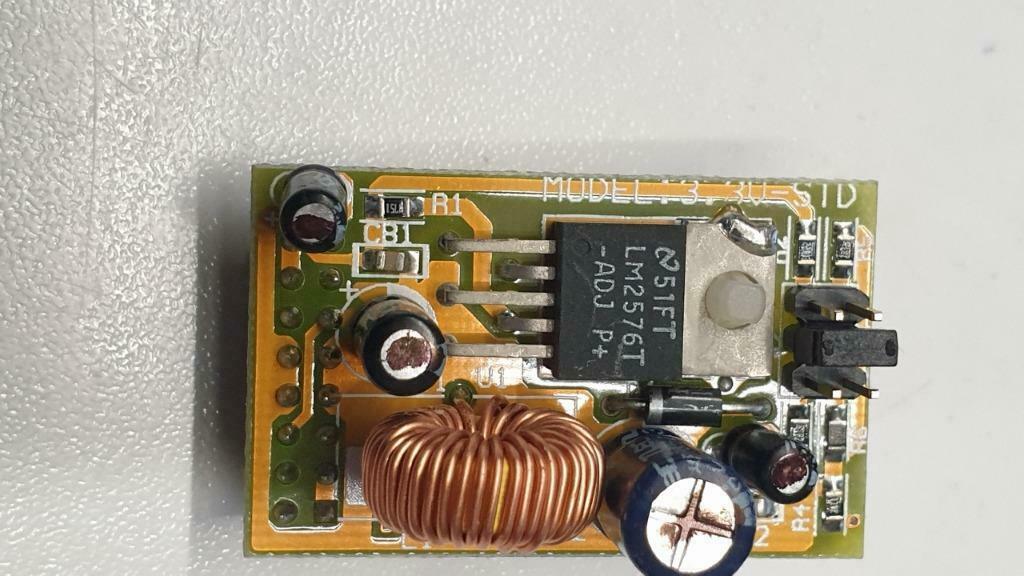

jw1084: spanningsregelaar 3 tot +- 40V max 3A op printje opgebouwd rond een LM2576T
in bijlage ontvang je excel bestandje om weerstanden te berekenen om andere spanningen in te stellen. Nu is er op het printje een jumpertje voorzien om spanning in te stellen (zonder iets aan te passen) van 3V , 3.3V , 3.45V , 3.6V, en 4.0V
originele tekst van fabrikant:
SIMPLE SWITCHER® 40V, 3A Low Component Count Step-Down Regulator
Low-Voltage Regulator Board 3.3V-STD ( voor moederboard FIC 486 PVT-IO)
allows the installation of low-voltage CPUs such as the Intel 486DX4-100. The jumper settings are screen-printed on the back. If not present, the motherboard only supports CPUs with standard voltage 5V (in this case on the J10 connector the jumpers 1-2, 3-4, 13-14 and 15-16 must be closed).
Vin (Min) (V) 4
Vin (Max) (V) 40
Vout (Min) (V) 3.3
Vout (Max) (V) 37
Iout (Max) (A) 3
Iq (Typ) (uA) 5000
Switching frequency (Min) (kHz) 42
Switching frequency (Max) (kHz) 63
Features Enable, Over Current Protection
Operating temperature range (C) -40 to 125
Rating Catalog
Regulated outputs (#) 1
ref jw1084
in bijlage ontvang je excel bestandje om weerstanden te berekenen om andere spanningen in te stellen. Nu is er op het printje een jumpertje voorzien om spanning in te stellen (zonder iets aan te passen) van 3V , 3.3V , 3.45V , 3.6V, en 4.0V
originele tekst van fabrikant:
SIMPLE SWITCHER® 40V, 3A Low Component Count Step-Down Regulator
Low-Voltage Regulator Board 3.3V-STD ( voor moederboard FIC 486 PVT-IO)
allows the installation of low-voltage CPUs such as the Intel 486DX4-100. The jumper settings are screen-printed on the back. If not present, the motherboard only supports CPUs with standard voltage 5V (in this case on the J10 connector the jumpers 1-2, 3-4, 13-14 and 15-16 must be closed).
Vin (Min) (V) 4
Vin (Max) (V) 40
Vout (Min) (V) 3.3
Vout (Max) (V) 37
Iout (Max) (A) 3
Iq (Typ) (uA) 5000
Switching frequency (Min) (kHz) 42
Switching frequency (Max) (kHz) 63
Features Enable, Over Current Protection
Operating temperature range (C) -40 to 125
Rating Catalog
Regulated outputs (#) 1
ref jw1084
...
...
...
...
...
...
...
...
...
...
...
...
