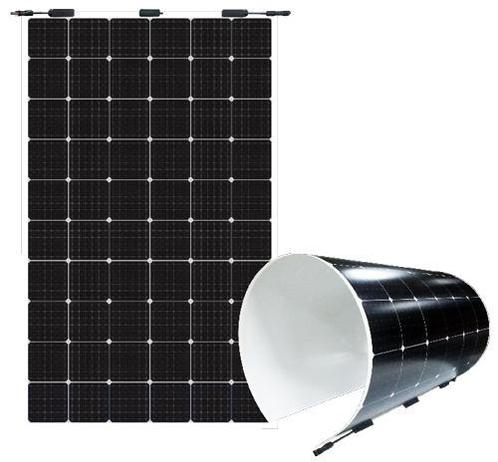

SUNPORT POWER FLEX 380 MONO SPP380QHES
Kenmerken
Beschrijving
SUNPORT POWER FLEX 380 MONO ZONNEPANEEL SPP380QHES
Installation Module Dimension (L×W×H) 1840mm x 1040 mm x 2.5mm
Weight 5.7 kg
Back material Back Sheet(white)
Cell (quantity / material / type / dimensions) 126(21x6) / Mono / Half-cell
Encapsulant POE
Frame None
Junction box(protection degree) IP68
Cable (length/cross-section area) Customizable / 4 mm2
Connector MC4 Compatible
Bending radius 0.3m
LightThin design5.7 kg weight, 2.5 mm thickness, match various requirements for
low-load projects Ultra Flexible
Ultra-thin silicon wafers with advanced organic polymer encapsulation materials, minimum bending radius reach 0.30mfit all kinds of
curved surface perfectly High Efficiency And Reliability
Busbar-free design increases cell conversion efficiencymore power
output can be achieved at low irradiance conditions Customizable
Customized design for different scenarios Convenient Installation
Easy installation and convenient transportation with lower cost Lead-free
Eco-friendly PV design achieves lead-free MWT module without
soldering materials 12year Quality Warranty25year Performance Warranty
