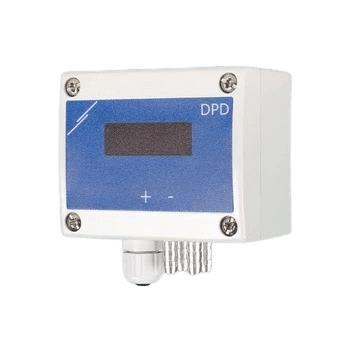

Dubbele verschildruktransmitter met display | 0 tot 1 kPa |

€ 222,18

Verzenden

40sinds 10 jan. '25, 08:40

Beschrijving

This dual HVAC sensor with display measures the differential pressure within the range of 0 to 1 kPa. In addition, you can also measure the air flow with it. 2 sets of pressure hoses can be connected to it. This allows 2 measurements to be performed simultaneously. The measured values are available via the analog outputs and via Modbus RTU communication. The output type of the analog outputs is selectable between 0-10 VDC, 0-20 mA or 0-100% PWM. The range and all other settings can be adjusted via Modbus RTU. This device operates on 24 VDC supply voltage.

Measure or control?This sensor's output signal will increase proportionally within the set range. If it were e.g. CO2 or relative humidity, then it is perfectly possible to control e.g. a valve or a fan in this way. The more CO2, the more ventilation. Or the more moisture, the further the extractor valve opens.However, when it comes to differential pressure, it is unlikely that proportional control is used. Usually, pressure control does not operate within a range , but rather at a set value , a "set point". A differential pressure controller will then, for example, control a fan in such a way that the set point is maintained.Since this device does not have a set point (but does have a range), it is not a controller, but a sensor or transmitter . They are usually used to transmit the measured values to an external control or regulation system.Differential pressure, air volume?
Technically, this sensor only measures the differential pressure [Pa]. However, if you have the K-factor of your fan, the air flow [m³/h] can also be calculated. It is sufficient to enter this K-factor in the Modbus register provided for this purpose. You then simply perform a pressure measurement. So using the connection sets PSET-PVC-200 or PSET-QF-200. The air flow is calculated automatically and you can read it out via the Modbus registers.7-segment LED display
The 7-segment LED display alternately shows the differential pressure or air volume of both measurements. 2 Measurements
This sensor performs 2 measurements simultaneously. So you could measure the saturation of 2 filters simultaneously by measuring the differential pressure across those filters.Analogue output and Modbus
To know the value measured by this sensor, there are 2 possibilities. Either you read it out in the Modbus registers, or you read it out via the analogue outputs. This proportionally transmits the measured pressure difference, the air flow or the air speed. The standard range of this sensor is 0 to 1,000 Pa. By default, the output sends 0 V at 0 Pa and 10 V at 1 kPa. This range, the output type (0-10 VDC / 0-20 mA / 0-100% PWM) and all other settings can be adjusted via Modbus RTU.The device operates on 24 VDCThe grounds of the power supply (V-) and output (GND) are not internally connected. This means that a 4-wire cable is required to connect this sensor. Most 24 VDC power supplies offer short circuit and overload protection. A 24 VDC supply voltage increases the safety and reliability of your installation. Be sure to also check out the Sentera power supplies.High-quality housing
The housing is made of high-quality r-ABS VO (UL94) plastic. This material is heat-resistant and offers good protection against impacts. The connections for the pressure lines are made of aluminum. The housing offers IP65 protection against the ingress of dirt and water. This sensor can be mounted on the wall.
