TVOC | Temperatuur | vochtigheidssensor, PoM

40sinds 10 jan. '25, 08:40

€ 153,33

Verzenden

Beschrijving

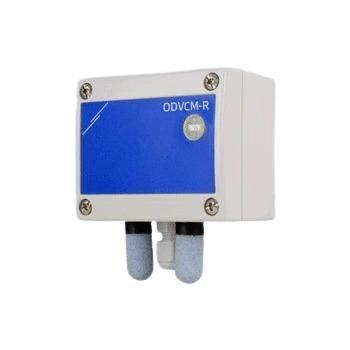

The ODVCM sensors are multifunctional outdoor sensors that measure indoor air quality, temperature, relative humidity and ambient light. Based on these measurements the dew point can be calculated. They are equipped with Power over Modbus and all parameters are accessible via Modbus RTU. They can be connected directly to an RTVS position controller (transformer controller) so that it switches your AC fan to the correct speed according to the set TVOC, temperature or humidity range. But thanks to their Modbus communication they can also be part of a network of sensors and controls or of your building management system.

Indoor air quality based on temperature, humidity and TVOC Controlling
indoor air quality is not easy. You would like the sensor to take everything into account. Well, this sensor from Sentera can register different measurements. And for each of these measurements it has a separate output. You could use one of these outputs to control an EC fan, a control valve or a speed controller for AC fans. But you can also send multiple outputs to your air handling unit or third party external controller. Like all recent room sensors from Sentera, it is equipped with a built-in temperature and relative humidity sensor. On top of that, it also has a built-in TVOC sensor element with which it measures the total amount of volatile organic compounds in your home. POM nutritionThe power supply and data of this version are via an RJ45 connection. There is no analogue output. This makes this sensor easy to connect and cheap to buy. Ideal as part of a network or to control the Sentera RTVS position controller.In combination with the RTVS position controllerThis sensor can be connected directly to a position controller that controls the speed of your AC fan. See video below.Additional light sensor
The Sentera room sensors are already equipped with a light sensor that measures the ambient light. You can save and retrieve the measured values. And in later, or existing Modbus-compatible, applications you will even be able to adapt the algorithm as a function of the ambient light . IP65 surface mounted

The housing is made of high quality r-ABS VO (UL94) plastic. This material is very tough and offers good protection against impact. It offers IP65 protection against dust and water ingress. Each sensor is calibrated and tested in our factory. We use high quality sensor elements and components. This ensures the long-term stability and accuracy of this HVAC transmitter. To ensure optimum performance (temperature and humidity measurement), it should be protected from direct sunlight.

Adjustable range per measurement value

For both TVOC, temperature and relative humidity you can determine the range within which the output signal moves proportionally.
