Temperatuur | vochtsensor, 24 VDC

€ 92,69

Verzenden

00sinds 10 jan. '25, 08:40

Beschrijving

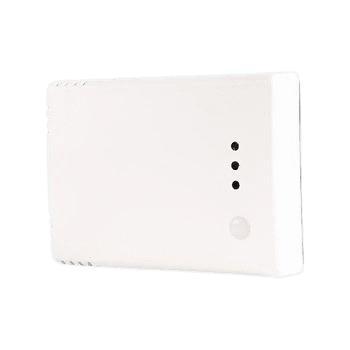

The RSTHF sensor measures temperature and relative humidity. For each of these measured values, it has a separate output to which you can directly connect the EC fan or control valve. Or, if desired, a speed controller for AC fans. The housing is designed in such a way that it fits perfectly over a 68 mm flush-mounted box. This allows the cabling to be neatly concealed. It also has an integrated light sensor, and requires 18 to 34 VDC supply voltage and for the output you can choose between 0 - 10 VDC / 0 - 20 mA / PWM. As always with the new generation of Sentera sensors, this sensor is equipped with Modbus RTU communication.

Indoor air quality based on temperature and humidity
Temperature and humidity measurement together in 1 sensor. The most important comfort parameters for a pleasant feeling indoors are temperature and relative humidity. This sensor measures both parameters and has a separate output for each of these values. You could use one of these outputs to control an EC fan, a control valve or a speed controller for AC fans. But you can also send multiple outputs to your air handling unit or third party external controller.On 24 VDC power supply

This sensor is available in different versions depending on the required power supply. This version can be powered by the most common 24 VDC power supplies. You can also connect multiple sensors simultaneously to the Sentera power supplies.

Additional light sensor
The Sentera room sensors are already equipped with a light sensor that measures the ambient light. You can save and retrieve the measured values. And in later, or existing Modbus-compatible, applications you will even be able to adapt the algorithm according to the ambient light .

Permanent visual control
Thanks to the integrated and dimmable LEDs, you can see at a glance whether the measured value is acceptable, or whether it is in the warning zone or even in the danger zone . Not every situation is the same, so you determine the values at which the LEDs change colour.

Smart constructionThe RSxxx series are suitable for surface mounting. But in a smart way. The mounting is designed in such a way that it fits perfectly over a standard 68 mm flush-mounting box. And the cable passage is at the back, so you can work perfectly with flush-mounted pipes.Adjustable range per measurement value
For both temperature and relative humidity you can determine the range within which the output signal moves proportionally. This signal can then be used as a signal input for an air handling unit or controller.
