Kenmerken
Conditie
Nieuw
Beschrijving

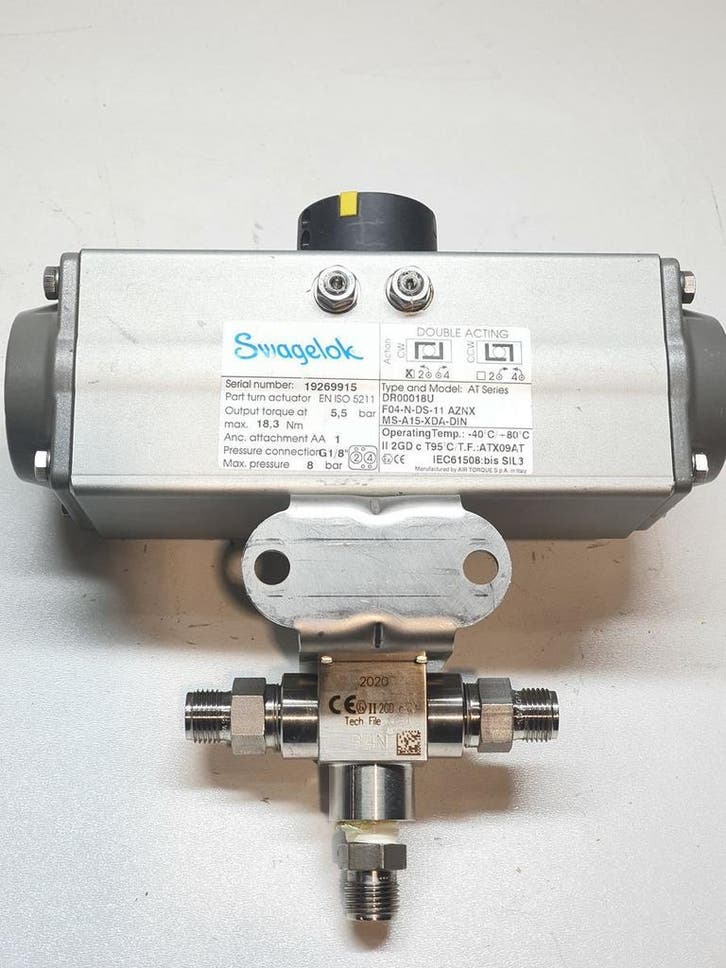

Swagelok DR00018U F04-N-DS-11 AZNX Double Acting Pneumatische actuatoren Gebruikt
Swagelok AT Series pneumatic rotary actuator
Category Parameter Specification General Manufacturer Swagelok Actuator Series AT Series Actuator Model / Type DR00018U Serial Number 19269915 Valve Model / Type SS-83XTS6-A15XD-14345 (3-way body, serial: 3160002676058) Operation Double-acting Rotation Angle 90° (quarter turn) Direction of Rotation CW / CCW (configurable) Torque & Pneumatic Data Rated Output Torque 18.3 Nm @ 5.5 bar Nominal Supply Pressure 5.5 bar Maximum Supply Pressure 8 bar Air Connection G 1/8" Operating Medium Clean, dry, non-lubricated instrument air Mechanical Interface Valve Mounting Standard EN ISO 5211 Mounting Size ISO 5211 (AA1 attachment) Shaft Interface Square drive (ISO compliant) Environmental & Certifications Operating Temperature Range ?40 °C to +80 °C ATEX Classification II 2GD c T95 °C / T.F.: ATX09AT IECEx Compliance IEC 61508 Safety Integrity Level SIL 3 CE Marked Yes Valve Maximum Pressure 1500 psig Valve Maximum Temperature 100 °F Construction Details Body Material Anodized aluminum Wetted Parts PTFE Fasteners Stainless steel Sealing Materials Industrial-grade elastomeric seals Manufacturer AIR TORQUE S.p.A. Italy
Voor meer info over dit product, product-opties, of eventueel direct bestellen, klik op link:
Swagelok AT Series pneumatic rotary actuator
Category Parameter Specification General Manufacturer Swagelok Actuator Series AT Series Actuator Model / Type DR00018U Serial Number 19269915 Valve Model / Type SS-83XTS6-A15XD-14345 (3-way body, serial: 3160002676058) Operation Double-acting Rotation Angle 90° (quarter turn) Direction of Rotation CW / CCW (configurable) Torque & Pneumatic Data Rated Output Torque 18.3 Nm @ 5.5 bar Nominal Supply Pressure 5.5 bar Maximum Supply Pressure 8 bar Air Connection G 1/8" Operating Medium Clean, dry, non-lubricated instrument air Mechanical Interface Valve Mounting Standard EN ISO 5211 Mounting Size ISO 5211 (AA1 attachment) Shaft Interface Square drive (ISO compliant) Environmental & Certifications Operating Temperature Range ?40 °C to +80 °C ATEX Classification II 2GD c T95 °C / T.F.: ATX09AT IECEx Compliance IEC 61508 Safety Integrity Level SIL 3 CE Marked Yes Valve Maximum Pressure 1500 psig Valve Maximum Temperature 100 °F Construction Details Body Material Anodized aluminum Wetted Parts PTFE Fasteners Stainless steel Sealing Materials Industrial-grade elastomeric seals Manufacturer AIR TORQUE S.p.A. Italy
Voor meer info over dit product, product-opties, of eventueel direct bestellen, klik op link:
...
...
...
...
...
...
...
...
...
...
...
...
