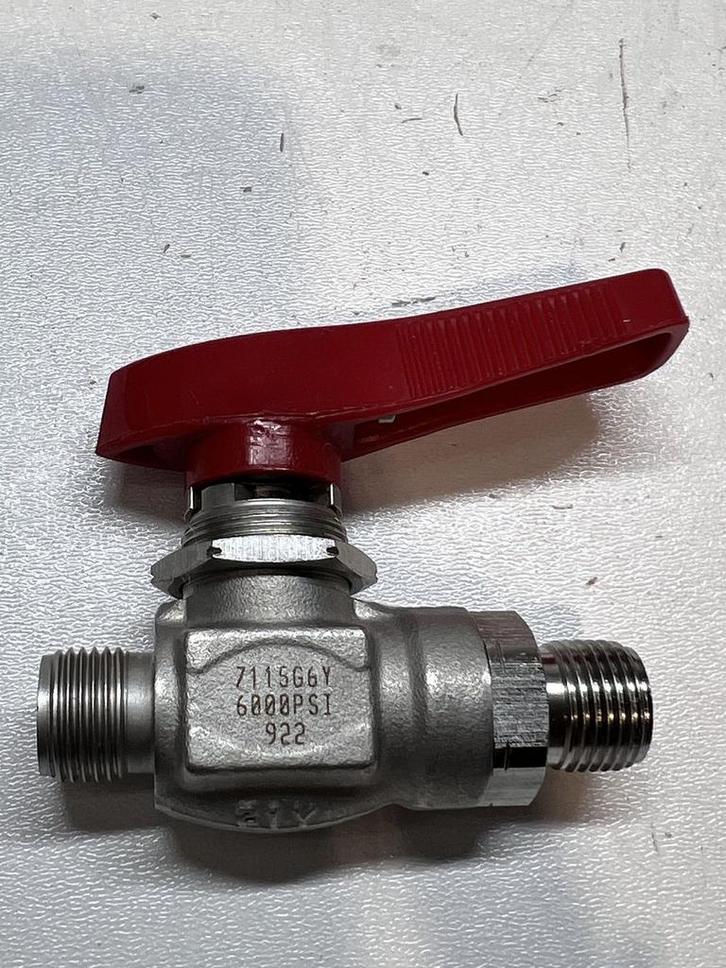

Hoke 7115G6Y 2-Way ball valve 3/8 inch Gyrolok 414 bar (6000 psi) Kranen Sourced from working



HOKE's 2-way ball valves 7115G6Y

Specifications:

Connections - Inlet

3/8" Gyrolok

Connections - Outlet

3/8" Gyrolok

Body Material

316 Stainless Steel

Operating Pressure Range

6000 psig at 70° F (414 bar at 21° C)

Operating Temperature Range

0 to +300 ºF-18 to +149 ºC

Orifice

0.25 in6.40 mm

Cv

1.40

C

1.75 in45 mm

E

3 1/4 in83 mm

H

1/2 in13 mm

H1

7/16 in11 mm

Panel Hole

49/64 in19 mm

Panel Thickness

1/4 in6.0 mm

Features & Benefits


-
Quarter turn handle provides a visual indication of on/off valve position, improving safety.

-
Dual encapsulated TFE seats and microfi nished ball ensure a leak tight seal. This combination provides greater valve reliability.

-
Dyna-Pak packing provides a leak-tight seal with low operating torque in vacuum or high pressure applications, helping to prevent fugitive emissions.

-
Floating ball provides pressure-assisted sealing and temperature wear compensation for longer valve cycle life and greater value.

-
A wide variety of Hoke Gyrolok end fittings or pipe fittings provide the correct fi tting option for the application.

-
Special High Tolerance NPT Thread
