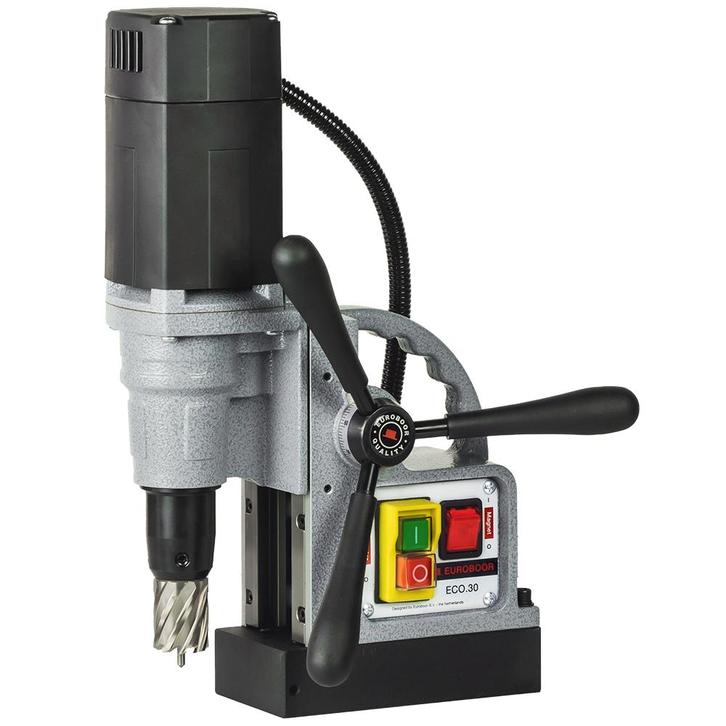

ECO.30 - Magneet kernboormachine, 30 mm, 220 V, EU.

De Euroboor ECO.30 is de lichtste 30 mm (1 3/16″) magnetische kernboormachine op de markt. Vanwege haar kleine formaat is de Euroboor ECO.30 de ideale magneet kernboormachine om in kleine ruimtes gaten te boren. Deze machine meet amper 27,5 cm (11″) in lengte en weegt slechts 8,5 kg (18,7 lbs). Met een vermogen van 900 W (8.2 A) boort deze kleine ECO.30 magneet kernboormachine gemakkelijk en snel gaten in metaal tot ø 30 mm (1 3/16″).

maximum_kernboor_diameter_(Inch)_____________________________: 1 3/16

maximum_kernboor_diameter_(mm)_______________________________: 30

minimum_kernboor_diameter_(Inch)_____________________________: 1/2

minimum_kernboor_diameter_(mm)_______________________________: 12

toepassing___________________________________________________: boren, verzinken

aansluiting_1_model__________________________________________: inwendig

aansluiting_1_maat_(Inch)____________________________________: 3/4

aansluiting_1_maat_(mm)______________________________________: 19.05

aansluiting_1_type___________________________________________: Weldon

maximum_diameter_verzinkboren_(Inch)_________________________: 1 3/8

maximum_diameter_verzinkboren_(mm)___________________________: 35

minimum_diameter_verzinkboren_(Inch)_________________________: 3/8

minimum_diameter_verzinkboren_(mm)___________________________: 10

elektronische_toerental_aanpassing___________________________: nee

type_smering_van_de_versnellingsbak__________________________: vet

hoogte_(Inch)________________________________________________: 15 1/16

hoogte_(mm)__________________________________________________: 383

maximum_hoogte_(Inch)________________________________________: 15 1/16

maximum_hoogte_(mm)__________________________________________: 383

minimum_hoogte_(Inch)________________________________________: 11 6/16

minimum_hoogte_(mm)__________________________________________: 293

lengte_(L2_/_Inch)___________________________________________: 10 13/16

lengte_(L2_/_mm)_____________________________________________: 275

magneet_hoogte_(Inch)________________________________________: 1 7/16

magneet_hoogte_(mm)__________________________________________: 37

magneet_lengte_(Inch)________________________________________: 6 5/16

magneet_lengte_(mm)__________________________________________: 160

magneet_breedte_(Inch)_______________________________________: 3 1/8

magneet_breedte_(mm)_________________________________________: 80

magnetische_kracht_(kilogram)________________________________: 1200

magnetische_kracht_(LBS)_____________________________________: 2645

motorvermogen_(Amp)__________________________________________: 8.2

motorvermogen_(Watt)_________________________________________: 900

netto_gewicht_(kilogram)_____________________________________: 8.5

netto_gewicht_(LBS)__________________________________________: 18.7

voedingsbron_aansluiting_____________________________________: EU stekker volgens CEE 7/4

voedingsstroom_______________________________________________: AC

voedingsbron_frequentie_(Hz)_________________________________: 50 - 60

voedingsbron_________________________________________________: netstroom

voedingsbron_spanning_(Volt)_________________________________: 220 - 240

voedingsbron_type____________________________________________: elektrisch

draairichting________________________________________________: rechtsom

toerental_belast_versnelling_1_(TPM)_________________________: 400

toerental_onbelast_versnelling_1_(TPM)_______________________: 775

slag_(Inch)__________________________________________________: 3 9/16

slag_(mm)____________________________________________________: 90

meetsysteem_(mm-inch)________________________________________: mm (metrisch)

totaal_vermogen_(Amp)________________________________________: 8.6

totaal_vermogen_(Watt)_______________________________________: 950

maximum_diameter_spiraal_boren_(Inch)________________________: 1/2

maximum_diameter_spiraal_boren_(mm)__________________________: 13

minimum_diameter_spiraal_boren_(Inch)________________________: 1/16

minimum_diameter_spiraal_boren_(mm)__________________________: 1

breedte_(Inch)_______________________________________________: 7 1/2

breedte_(mm)_________________________________________________: 190
