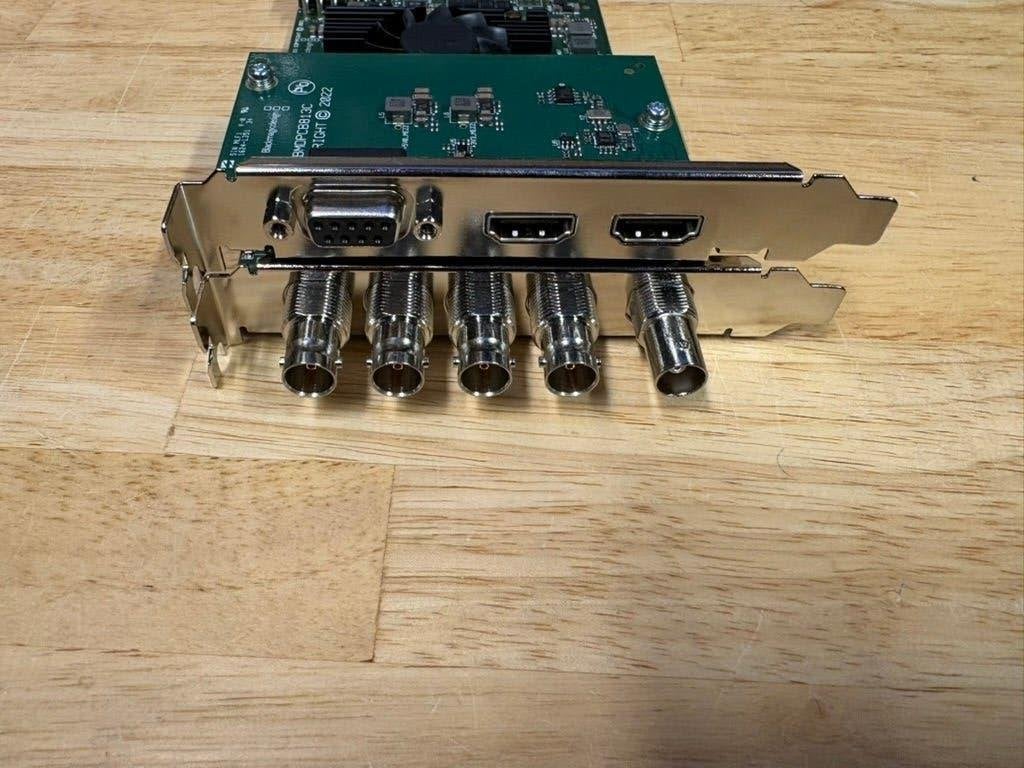

Professionele 8K SDI en HDMI kaart. Als nieuw.

Zie specificaties op website

Op factuur, BTW recuperatie mogelijk.

_

Description
DeckLink 8K Pro G2 includes four bi-directional 12G-SDI plus HDMI 2.1 connections to support all SD, HD, Ultra HD, 4K and 8K standards, making it the ultimate professional 8K PCIe capture and playback card for designed for feature film production. You can also use the free DeckLink SDK to configure up to 4 video streams in any direction, format or frame rate up to 4K DCI 60p, for true multi channel capture and playback. DeckLink 8K Pro G2 supports 8 and 10-bit YUV 4:2:2, as well as 10 and 12-bit RGB 4:4:4 with full Rec. 2020 color. In addition, you can work at up to 120 frames per second in HD and 4K, and up to 60 frames per second in 8K. The four 12G-SDI connections support up to 64 channels of embedded audio. DeckLink 8K Pro G2 is perfect for the next generation of high resolution, high frame rate and high dynamic range workflows!
Download Manual Download Software
Price
$855
Connections
SDI Video Inputs
4 x bi-directional 12G‑SDI
Supports SD/HD/2K/4K/8K, single, dual link and quad link 4:2:2/4:4:4. 2D/3D switchable.
SDI Video Outputs
4 x bi-directional 12G‑SDI
Supports SD/HD/2K/4K/8K, single, dual link and quad link 4:2:2/4:4:4. 2D/3D switchable.
SDI Audio Inputs
16 Channels embedded in SD/HD/2K.
64 Channels embedded in 4K/8K.
SDI Audio Outputs
16 Channels embedded in SD/HD/2K.
64 Channels embedded in 4K/8K.
HDMI Video Inputs
1 x HDMI 2.1
HDMI Video Outputs
1 x HDMI 2.1
HDMI Audio Inputs
8 Channels embedded in TMDS.
32 Channels embedded in FRL.
HDMI Audio Outputs
8 Channels embedded in TMDS.
32 Channels embedded in FRL.
Sync Input
Tri-Sync or Black Burst.
Remote Control
1 x RS‑422 Out
Computer Interface
PCI Express 8 lane generation 3, compatible with 8 and 16 lane PCI Express slots.
