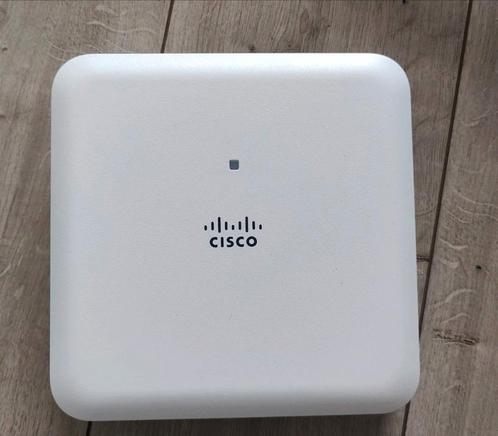

Part Number: AIR-AP1832I-S-K9
Description: 802.11ac Wave 2 AP, 3x3:2, Internal Antenna, S Regulatory Domain
Features
3x3 MIMO with two spatial streams, single-user or multiuser MIMO
MRC
802.11ac beamforming (transmit beamforming)
20-, 40-, and 80-MHz channels
PHY data rates up to 867 Mbps (80 MHz in 5 GHz)
Packet aggregation: A-MPDU (Tx/Rx), A-MSDU (Tx/Rx)
802.11 DFS
CSD support
Regulatory Domain
S (S regulatory domain):
2.412 to 2.472 GHz; 13 channels
5.180 to 5.320 GHz; 8 channels
5.500 to 5.700 GHz;, 11 channels
5.745 to 5.825 GHz; 5 channels
Integrated antenna
2.4 GHz, gain 3 dBi, internal omni, horizontal beamwidth 360°
5 GHz, gain 5 dBi, internal omni, horizontal beamwidth 360°
Interfaces
1 x 10/100/1000BASE-T autosensing (RJ-45), Power over Ethernet (PoE)
Management console port (RJ-45)
USB 2.0 (enabled via future software)
Dimensions (W x L x H): 8.3 x 8.3 x 2 in. (210.8 x 210.8 x 50.8 mm)
Weight: 3.12 lb (1.41 kg)
