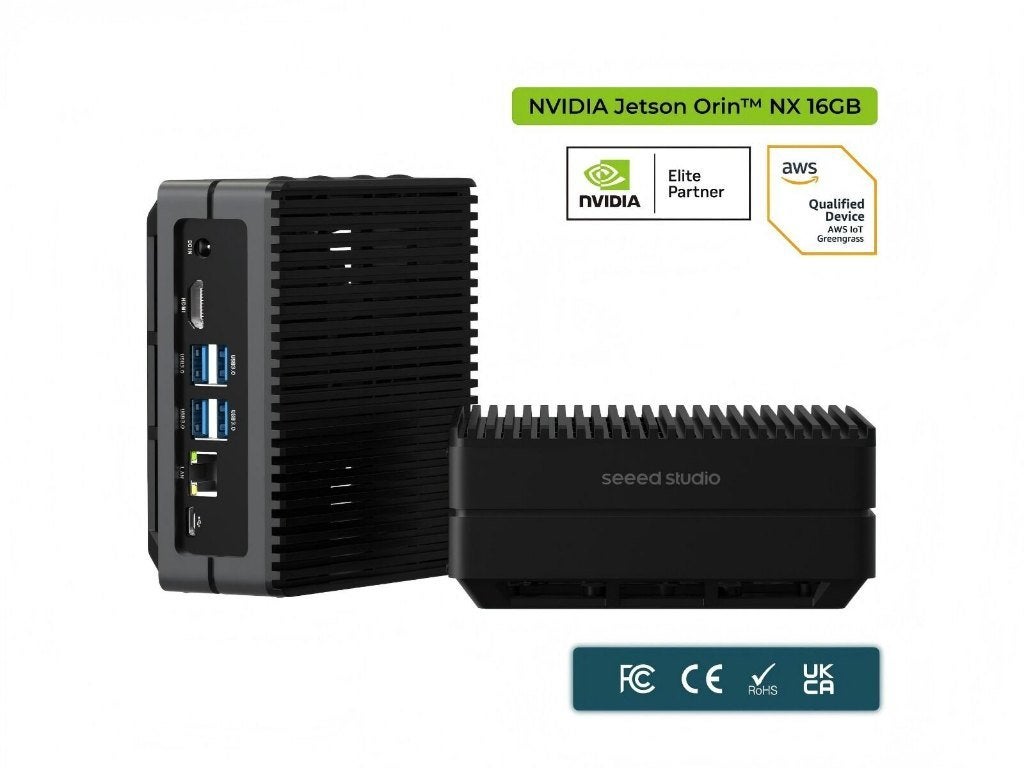

reComputer J4012 - Edge AI Computer met NVIDIA Jetson Orin NX 16GB

- 128GB NVMe M.2 PCle Gen3x4 2280 Internal SSD

- Vers geflashed met JetPack 7.2
Meer info: ... developer.nvidia.com/embedded/jetpack/downloads

- Ubuntu 24.04.4 LTS

- Upgraded met:
- Betere koeler en stille ventilator. (originele koeler inbegrepen)
- Extra grote ventilator in deksel voor warmere omgevingen die eenvoudig in of uit geplugd kan worden.

Verkoop hem wegens niet meer gebruikt.

-------------------------------------------------------------------

Specification

AI Performance: 100 TOPS
GPU: 1024-core NVIDIA Ampere architecture GPU with 32 Tensor Cores
CPU: 8-core Arm® Cortex®-A78AE v8.2 64-bit CPU
Memory: 16GB 128-bit LPDDR5
Video Encode:1 x 4K60 (H.265) | 3x 4K30 (H.265) | 6x 1080p60 (H.265) | 12x 1080p30 (H.265)
Video Decode: 1x 8K30 (H.265) | 2x 4K60 (H.265) | 4x 4K30 (H.265) | 9x 1080p60 (H.265) | 18x 1080p30 (H.265)
DL Accelerator: 2x NVDLA v2

Carrier Board

Storage: 1x M.2 Key M PCIe (M.2 NVMe 2280 SSD 128G included)

Networking:
Ethernet: 1x RJ-45 Gigabit Ethernet (10/100/1000M)
M.2 KEY E: 1x M.2 Key E for WiFi/Bluetooth module（module not included）

I/O:
USB: 4x USB 3.2 Type-A (10Gbps)
1x USB2.0 Type-C (Device Mode)
Camera: 2x CSI (2-lane 15pin)
Display: 1x HDMI 2.1
Fan: 1x 4 pin Fan Connector (5V PWM)
CAN: 1x CAN
Multifunctional Port: 1x 40-Pin Expansion header
1x 12-Pin Control and UART header
RTC: 1x RTC 2-pin, supports CR1220 (not included)

Power: 9-19V DC

Mechanical: Dimensions (W x D x H)
130mm x 120mm x 58.5mm (with case)

Installation: Desk, wall-mounting

Operating Temperature: -10℃~60℃
