Kenmerken
Conditie
Zo goed als nieuw
Beschrijving
16-port Gig + 10G access switch with 139W PoE+ power.
Ports
12x RJ-45 autosensing 10/100/1000 PoE+ ports
2x SFP+ 1/10GbE ports
2x 1GbE ports
Latency1,000 Mb latency: < 3.8 µs
10Gbps latency: < 2.9 µs
Switching capacity : 68 Gbps
Memory and processorDual Core Arm® Cortex® A9 @ 1016 MHz
1 GB DDR3 SDRAM
Packet buffer size: 12.38 MB 4.5 MB Ingress/7.875 MB Egress
4 GB eMMC
Layer 3 services
– DHCP server : centralizes and reduces the cost of IPv4 address management
Layer 2 switching
– IEEE 802.1ad Q-in-Q increases the scalability of an Ethernet network by providing a hierarchical structure; connects multiple LANs on a high-speed campus or metro network
– VLAN Support and Tagging supports IEEE 802.1Q (4094 VLAN IDs) and 2K VLANs simultaneously
– Jumbo packet support improves the performance of large data transfers; supports frame size of up to 9220 bytes
– IEEE 802.1v protocol VLANs isolate select non-IPv4 protocols automatically into their own VLANs
– Rapid Per-VLAN Spanning Tree (RPVST+) allows each VLAN to build a separate spanning tree to improve link bandwidth usage; is compatible with PVST+
– GVRP and MVRP allows automatic learning and dynamic assignment of VLANs
– VxLAN encapsulation (tunneling) protocol for overlay network that enables a more scalable virtual network deployment
Layer 3 routing
– Static IP routing : provides manually configured routing; includes ECMP capability
– 256 static and 10,000 RIP routes : facilitate segregation of user data, without adding external hardware
– Routing Information Protocol (RIP) : provides RIPv1, RIPv2, and RIPng routing
– Access OSPF : provides OSPFv2 and OSPFv3 protocols for routing between access and the next layer on the LAN. Only one OSPF area and up to 8 interfaces are supported
– Policy-based routing : uses a classifier to select traffic that can be forwarded based on policy set by the network administrator (limited to 16 next-hop routes)
Toestel is maar tijdelijk gebruikt, is vervangen door een 24 poort model.

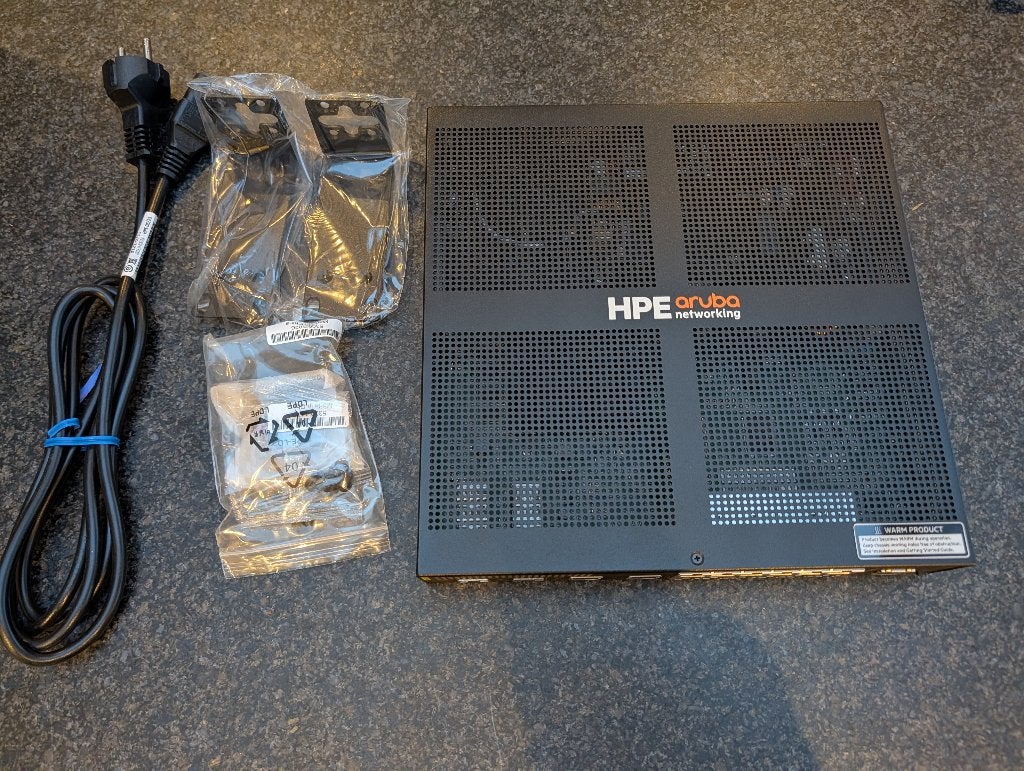

zit nog in originele doos met alle toebehoren als beugels voor rackmontage, rubberen voetjes voor tafelmontage en nieuwe stroomkabel.
Toestel werkt nog perfect, is terug naar fabrieksinstellingen geplaatst.
Toestel kan zeker getest worden indien gewenst.
nieuwprijs +/- €900
vraagprijs €300 of doe een bod, op belachelijke biedingen wordt niet gereageerd.
Op te halen in Roeselare, verzenden kan ook (kosten ten laste van de koper (€9,40 verzekerde verzending op adres))
Ports
12x RJ-45 autosensing 10/100/1000 PoE+ ports
2x SFP+ 1/10GbE ports
2x 1GbE ports
Latency1,000 Mb latency: < 3.8 µs
10Gbps latency: < 2.9 µs
Switching capacity : 68 Gbps
Memory and processorDual Core Arm® Cortex® A9 @ 1016 MHz
1 GB DDR3 SDRAM
Packet buffer size: 12.38 MB 4.5 MB Ingress/7.875 MB Egress
4 GB eMMC
Layer 3 services
– DHCP server : centralizes and reduces the cost of IPv4 address management
Layer 2 switching
– IEEE 802.1ad Q-in-Q increases the scalability of an Ethernet network by providing a hierarchical structure; connects multiple LANs on a high-speed campus or metro network
– VLAN Support and Tagging supports IEEE 802.1Q (4094 VLAN IDs) and 2K VLANs simultaneously
– Jumbo packet support improves the performance of large data transfers; supports frame size of up to 9220 bytes
– IEEE 802.1v protocol VLANs isolate select non-IPv4 protocols automatically into their own VLANs
– Rapid Per-VLAN Spanning Tree (RPVST+) allows each VLAN to build a separate spanning tree to improve link bandwidth usage; is compatible with PVST+
– GVRP and MVRP allows automatic learning and dynamic assignment of VLANs
– VxLAN encapsulation (tunneling) protocol for overlay network that enables a more scalable virtual network deployment
Layer 3 routing
– Static IP routing : provides manually configured routing; includes ECMP capability
– 256 static and 10,000 RIP routes : facilitate segregation of user data, without adding external hardware
– Routing Information Protocol (RIP) : provides RIPv1, RIPv2, and RIPng routing
– Access OSPF : provides OSPFv2 and OSPFv3 protocols for routing between access and the next layer on the LAN. Only one OSPF area and up to 8 interfaces are supported
– Policy-based routing : uses a classifier to select traffic that can be forwarded based on policy set by the network administrator (limited to 16 next-hop routes)
Toestel is maar tijdelijk gebruikt, is vervangen door een 24 poort model.
zit nog in originele doos met alle toebehoren als beugels voor rackmontage, rubberen voetjes voor tafelmontage en nieuwe stroomkabel.
Toestel werkt nog perfect, is terug naar fabrieksinstellingen geplaatst.
Toestel kan zeker getest worden indien gewenst.
nieuwprijs +/- €900
vraagprijs €300 of doe een bod, op belachelijke biedingen wordt niet gereageerd.
Op te halen in Roeselare, verzenden kan ook (kosten ten laste van de koper (€9,40 verzekerde verzending op adres))
...
...
...
...
...
...
...
...
...
...
...
...
