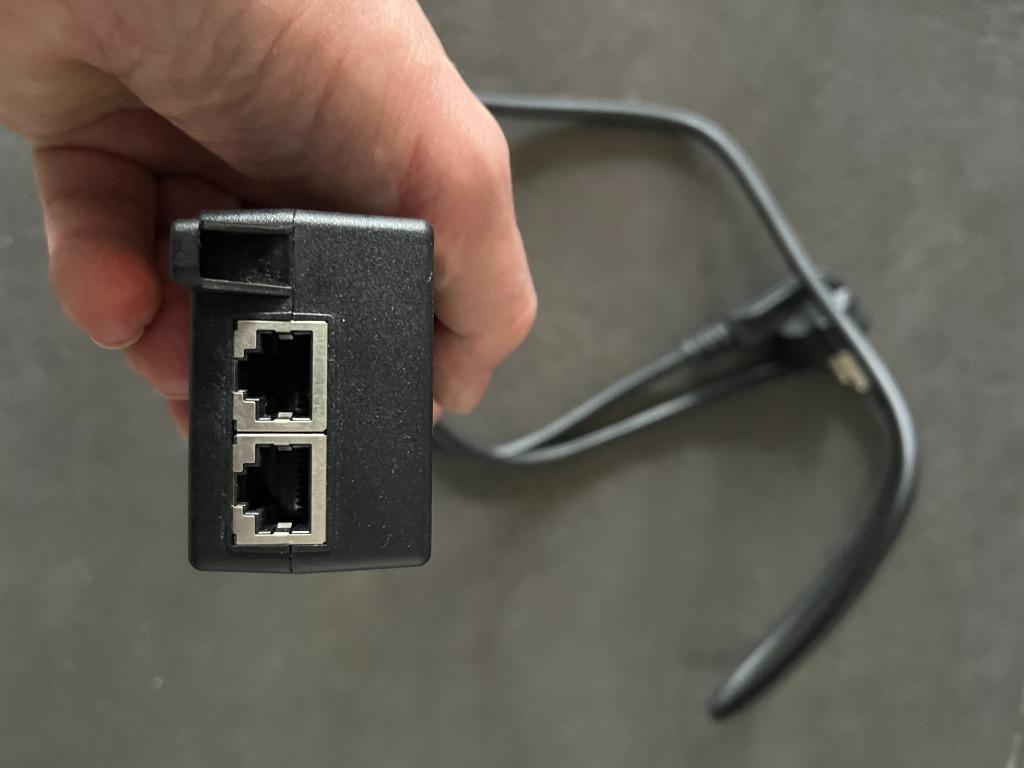

Grandstream G0720 PoE adapter

Zelden tot bijna nooit gebruikt.

Zie ook mijn andere zoekertjes.

Grandstream PoE injector
Passive PoE injector with 48V 0.5A Output
Positive pole: Pin 4+5
Negative pole: 7+8
Power cable included
For 100MBit and gigabit devices

• G0720 Po E Injector Technical Data Po E Standard No Detection – passive injector Input Power: 100-240
• VAC; 50-60 Hz 0.75 A Power over Ethernet Output Output: 48
• V0.5 A Power Consumption: 24
• W max RJ-45 pin assignment and polarity Power: Pins 4/5(+), 7/8(-) Data Rate: 10/100/1000
• Mbps MTBF: 500
• K Hours Safety Approval: UL/c UL, GS, CB, FCC, CE Efficiency VI Standards: IEEE 802.3 10 Base- T IEEE 802.3 U 100 Base- TX IEEE 802.3ab 1000 Base- T IEEE 802.3af Power over Ethernet IEEE 802.3at Power over Ethernet Plus LED Indicator AC power.

• Po E Active Interface: 1 ".
• Data ' In RJ-45 Ethernet Port 1 ".
• Data+ Power".
• Output RJ-45 Ethernet Port 1 AC Input Power socket Environmental Operating Temp: 0ââÆ to +40ââÆ.
• Storage Temp: -40ââÆto +70ââÆ.
• Humidity: 0 to +95ââÆ RH Mechanical Weight: 133g Dimension( LWH): 9753.533.5mm 11453.567.5mm(ear)
