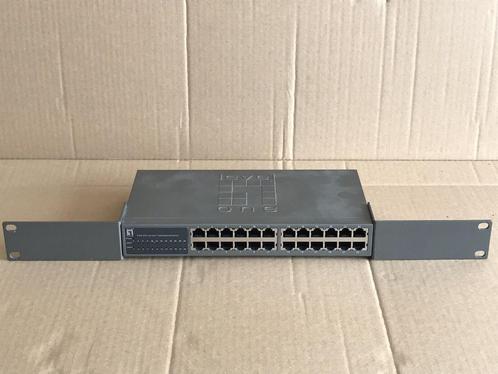

LevelOne FSW-2421 Fast Ethernet Switch

Model
Brand LevelOne
Model FSW-2421
Format & Standards
Standards IEEE 802.3/ IEEE 802.3u
IEEE 802.3x Flow Control and Back Pressure
Ports & Interface
Primary Ports 24 x RJ45
Primary Port Speed 10/100Mbps
Data Transmission
MAC Address Table 4K
Switching Method Store and Forward
VLAN Support No
Details
Buffer Memory 1.25MBits
Protocols CSMA/CD
Cabling 10Base-T: 2-pair UTP/STP Cat.3/4/5, Up to 100 m
100Base-TX: 2-pair UTP/STP Cat. 5, Up to 100 m
LEDs Per Device: Power
Per RJ-45 port: Link/Activity (Green)
Power Power Supply: Internal Power Supply, 100~240VAC, 50/60Hz
Power Consumption: 19 Watts (max)
Features
Features Wire-speed and non-blocking forwarding rate
Supports back plane up to 4.8 Gbps
Supports Auto-negotiation on all ports
Supports Auto MDI/MDIX on all ports
Supports full-duplex IEEE802.1x flow control
Supports half-duplex back pressure flow control
Plug-and-Play, nothing to configure
LEDs on front panel for easy access and real time viewing status of switch
Accessory for stacking up or mounting into 19” rack
Internal power supply
Dimensions & Weight
Dimensions 9.8" x 5.2" x 1.5"
Environmental
Temperature 0ºC to 45ºC (32ºF to 113ºF)
Humidity 10% - 90%, Non-condensing
