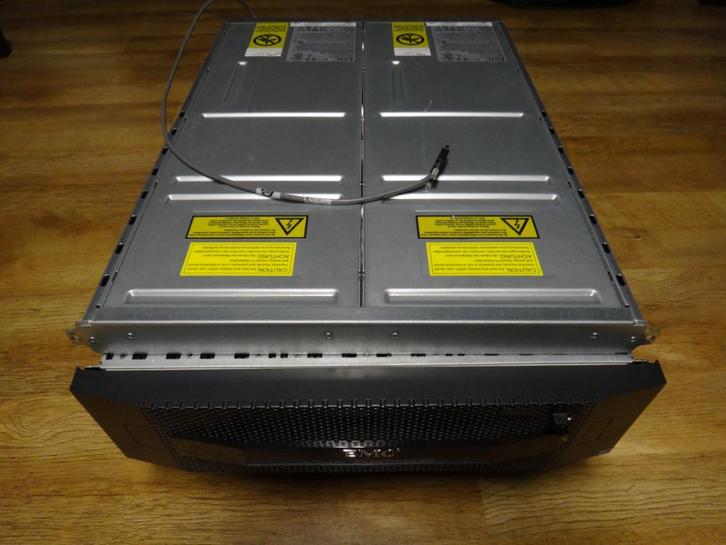

Dell storage bay - EMC2 VNX 5300 Series + 3 extended bay

A vendre matériel informatique décommissionné
Raison : déménagement des bureaux vers "office as a service" et migration IT vers datacenter/cloud

Dell storage bay - EMC2 VNX 5300 Series + 3 extended bay

Prix a discuter

https:www.dell.com/community/s/vjauj58549/attachments/vjauj58549/vnx/21221/1/h8514-vnx-series-ss.pdf

EMC ® VNX ® series unified storage systems deliver uncompromising scalability and
flexibility for the mid-tier while providing market-leading simplicity and efficiency to
minimize total cost of ownership

Specifications
ARCHITECTURE
Based on the powerful new family of Intel Xeon-5600 processors, the EMC VNX
implements a modular architecture that integrates hardware components for block, file,
and object with concurrent support for native NAS, iSCSI, Fibre Channel, and FCoE
protocols. The series delivers file (NAS) functionality via two-to-eight X-blade data
movers and block (iSCSI, FCoE, and FC) storage via dual storage processors leveraging
full 6 Gb SAS disk drive topology. You can also start with block or file functionality and
easily upgrade to unified when needed. The unified configuration includes the following
rack-mounted enclosures:
• Disk processor enclosure (holds disk drives) or storage processor enclosure
(requires disk drive tray) plus standby power system to deliver block protocols
• One or more data mover enclosures to deliver file protocols (required for file and
unified configurations)
• Control station (required for file and unified configurations)


VNX PHYSICAL SPECIFICATIONS

BLOCK COMPONENTS VNX5300
Min/Max Drives 4/125
Array Enclosure
- 3U Disk Processor Enclosure (Holds 15x3.5” or 25x2.5” SAS/Flash drives)
Drive Enclosure Options (DAE)
- 25x2.5” SAS/Flash drives–2 U 1
- 5x3.5” SAS/Flash drives–3 U
Standby Power System
- 1U 1.2KW
Raid Options
- 0/1/10/3/5/6
CPU/Memory per Array
- Intel Xeon 5600/16 GB
Max Block UltraFlex ™ IO Modules per Array
- 4
Embedded IO Ports per Array
- 8 FC ports and 4 SAS ports (2 BE SAS buses)
Max Total Ports per Array
- 24
2/4/8 Gb/s FC Max Ports per Array
- 16
1 GBaseT iSCSI Max Total Ports per Array
- 8
10 GbE iSCSI Max Total Ports per Array
- 8
Max FCoE Total Ports per Array
- 8
6 Gb/s SAS Buses (4Lanes per Bus) for DAE Connections
- 2

FILE COMPONENTS*
# File X-Blades
- 1-2
# Control Stations
- 1-2 x 1U Server
X-Blade: CPU/Memory
- Intel Xeon 5600/ 6 GB
Max File UltraFlex IO Modules per X-Blade
- 3
Min/Max 2/4/8 Gb/s FC Ports per X-Blade
- 4
Max IP Ports per X-Blade
- 8
Max 1 GBaseT Ports per X-Blade
- 8
Max 10 GbE Ports per X-Blade
- 4
Management
- LAN 2x 10/100/1000 Copper GbE

FUNCTIONAL LIMITS
Max Raw Capacity
- 360 TB
Max SAN Hosts
- 2,048
Max Number of Pools
- 20
Max Number of LUNs
- 2,048
Max LUN Size
- 16 TB (Virtual Pool LUN)
Max File System Size
- 16 TB
Maximum Usable File Capacity per X-Blade
- 256 TB
OS Support
- Block OS’s Plus File
- OS’s see E-Lab
- Navigator and NAS
- Support Matrix on Powerlink
