Cisco webex monitor cs-desk-k9

Nieuw

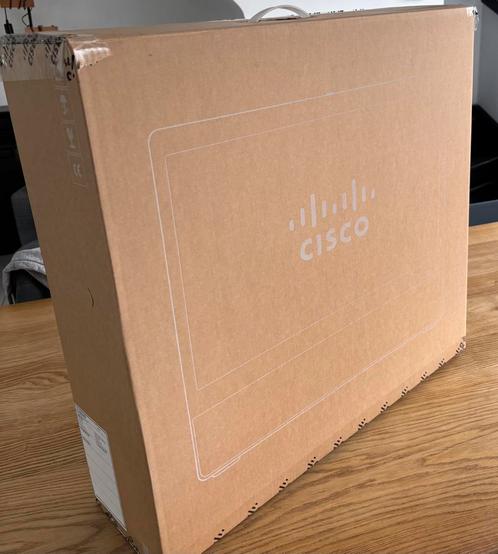

Nog in gesloten doos
Informatie kan je best raadplegen op de Cisco website


Specifications

Description

Software compatibility
● RoomOS 11 or later
Sensors
● Temperature (experimental) for Control Hub analytics reporting
● Humidity (experimental) for Control Hub analytics reporting
Multipoint support
● 4-way embedded SIP/H.323 * conferencing capability with MultiSite option
MultiSite features (embedded multipoint)*
● Adaptive SIP/H.323 * MultiSite:
● 3-way resolution up to 1080p30 + content up to 1080p15
● 4-way resolution up to 720p30 + content up to 1080p15
● Full individual audio and video transcoding
● H.323 */SIP/VoIP in the same conference
● Support for presentation (H.239/BFCP) from any participant at resolutions up to 3840 x 2160p5
● Best impression (automatic continuous presence layouts)
● Encryption and dual steam from any site
Default components in Cisco Desk
● Cisco Desk
● Desk Stand
● Network cable 3m/118 in
● USB-C cable for USB passthrough feature, 1.8 m/70.8 in
● Power supply for Cisco Desk
Optional hardware components
● Replaceable metal speaker grille
● Stylus kit
● Wall mount
Display
● 24-inch LCD monitor
● 1080p resolution (16:9)
● High-contrast VA LED panel
● Contrast ratio: 1000:1 (typical)
● Viewing angle: +/- 89° (typical)
● Brightness: 300 cd/m2 color depth 16.7M colors
● Color gamut: 72% NTSC (95% sRGB)
User interface
● Projected capacitive touch
● Multi-touch
Supported PC resolutions
● 1080p60
Camera
● 64° horizontal field of view, 50° vertical field of view
● f/2.0 aperture
● 8MP image sensor, supports up to 30 fps
● 1/3.2-inch CMOS
● Automatic tilt adjustment
● Automatic focus, brightness, and white balance
● Focus distance: 10 cm to infinity
● Privacy shutter with LED light
Video standards
● H.263, H.264 AVC
Video inputs
● USB-C DisplayPort Alternate Mode up to 1920x1080p60
● HDMI 2.0 type A input supports formats up to 1920x1080p60
Encode and decode
● Video stream: full HD 1080p30
● Content stream: 1080p60
● Up to 4K content decode from Webex
Audio standards
● G.711, G.722, G.722.1, G.729, AAC-LD, and Opus
Audio features
● High-quality full-band audio
● Automatic Gain Control (AGC)
● AI-powered noise removal
● Active lip synchronization
● Focused microphone pickup
● Music mode
Audio inputs
● Dynamic four-microphone array
● Audio in from HDMI
● Audio in from DisplayPort over USB-C
● USB
● Bluetooth®
Audio outputs (external)
● USB headset
● Bluetooth® headset
Loudspeaker (integrated)
● Premium full-range centre speaker with passive bass radiators for extended low-frequency output.
● Frequency range: 80 Hz to 20 kHz
USB-C BYOD
● Ability to provide the following over one USB-C cable to a connected computer
● Extension of display (1920x1080@60fps) (computer must support Alt-mode DisplayPort)
● Touch redirect capabilities on supported operating systems (available post-First Customer Ship [FCS])
● Use desk camera, microphone, and speakers with any software client
Power
● Rated: 70W maximum
● Networked standby power consumption: 7.5W maximum
Network standby
● After 2 minutes idle (without any interaction): Halfwake
● After 10 minutes idle: Standby, level: DisplayOff
● After 12 minutes idle: Standby, level: Networked
Other USB 2.0 ports
● One standard type-A port enables headsets and handset use
● One Micro B USB port is intended for service only
