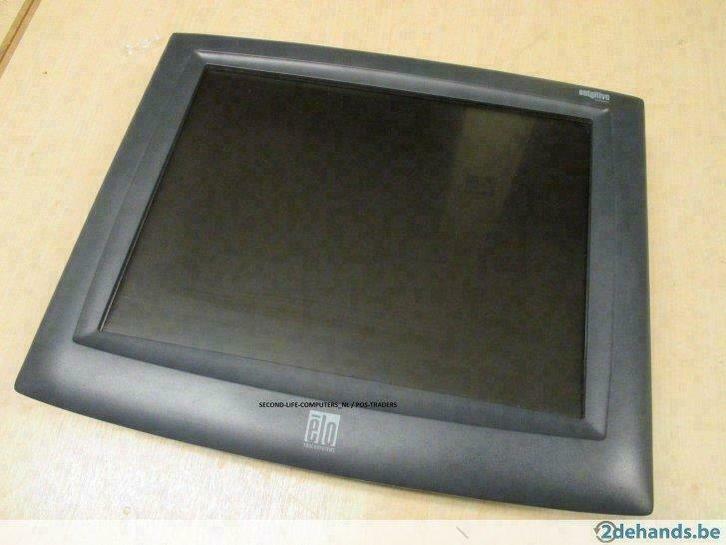

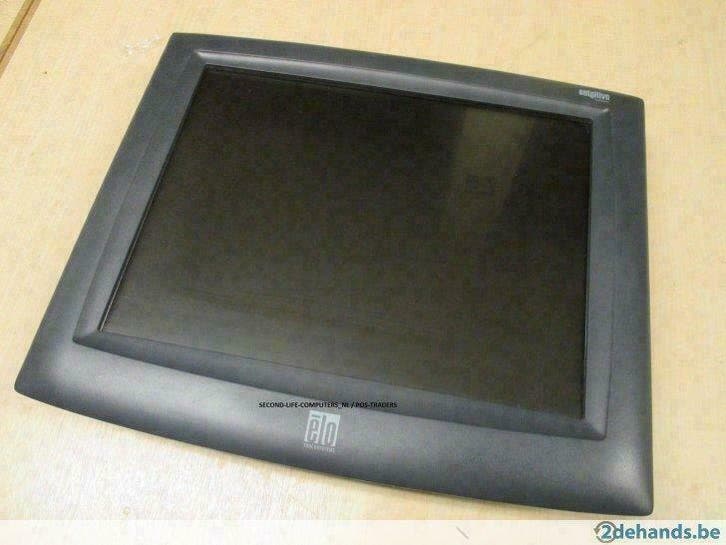

ELO Touchsystems ET1525L 15 LCD Touchscreen Touch Screen

Categorie

Computers en Software

Monitoren en Beeldschermen

Kenmerken

Conditie:Gebruikt

Beschrijving

ELO Touchsystems ET1525L ET1525L-8UWC-1



Comes without stand.



Including cables.





Features
"Designed for touch" features such as a stable tilt base
Cables hidden from user's view
Mounting holes on base bottom for tabletop security
Base removable or reversible for wall mounting, plus VESA mounting option
Built-in speakers located in display head
USB touch interface
Controls on the side rather than the front, plus lockout function for public use
Multilingual on-screen display (OSD) with extras including speaker volume, treble, bass, and balance
Internal power supply
Long-lasting product cycle
Worldwide agency approvals
Specifications
Model 1525L
Availability Worldwide
Case/bezel color Dark gray
Display Size: 15" diagonal
Aspect ratio: 4:3
Useful screen area Horizontal: 11.9" (304 mm)
Vertical: 8.9" (228 mm)
Monitor dimensions Width: 15.37" (390 mm)
Height (inc. base): 15.40" (391 mm)
Depth (inc. base): 8.2" (208 mm)
Native (optimal) resolution 1024 x 768 at 60, 70 or 75 Hz
Other supported resolutions 1024 x 768 at 65 Hz (Sun)
832 x 624 at 75 Hz (Mac)
800 x 600 at 56, 60, 72 or 75 Hz
720 x 400 at 70 Hz
720 x 350 at 70 Hz
640 x 480 at 60, 66 (Mac), 72 or 75 Hz
Colors 16.2 million with dithering (6 bit)
Brightness LCD panel: 300 nits (typical)
Response time 25 msec (typical)
Viewing angle
(typical, from center) Horizontal (left/right): ±75° or 150° total
Vertical (up/down): 75/50° or 125° total
Contrast ratio 500:1
Input video format Analog (no proprietary video card needed)
Input video signal connector Mini D-Sub 15-Pin VGA type
Input frequency Horizontal: 31.5-60 kHz
Vertical: 56-75 Hz
Power supply Type: Internal power supply
Input (line) voltage: 100-240 VAC, 50-60 Hz
Power consumption 20 W max.
Temperature Operating: 0°C to 40°C
Storage: -30°C to 60°C
Humidity Operating: 20%-80%
Storage: 5%-95%
noncondensing
Weight
(approx.) Actual: 14.7 lb (6.67 kg)
Shipping: 20.45 lb (9.28 kg)
Backlight lamp life Min 40,000 hours to half brightness
MTBF 50,000 hours minimum demonstrated
Agency approvals UL/cUL, TÜV-GS, CE, FCC/IC/VCCI/C-Tick Class B
Speakers Two built-in, rear-facing 1W speakers in display head
On-screen display (OSD) Digital OSD
User's controls Side: auto, enter, ±, menu, power
OSD: contrast, brightness, H/V position, color, temperature, clock, phase, recall, OSD time, language (English, German, Spanish, Japanese, French)
OSD disable/enable: power, volume, and/or OSD menu

Conditie: Gebruikt
Levering: Ophalen, Verzenden
