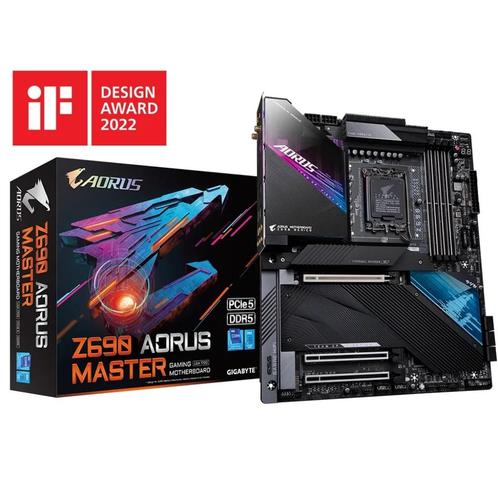

Gigabyte Z690 AORUS MASTER Gaming Motherboard

Carte mère Gigabyte Z690 AORUS MASTER Gaming Motherboard
Excellent état, à vendre pour upgrade.
Fournis avec boîte et accessoires.
Possibilité d'achat combiner avec CPU i9 12900k.

Description:

• LGA1700 socket: Support for 14th, 13th, and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors*
• L3 cache varies with CPU CPU
• Intel® Z690 Express Chipset
• Support for DDR5 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 MT/s memory modules
• 4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory
• Dual channel memory architecture
• Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
• Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
• Support for Extreme Memory Profile (XMP) memory modulesMemory

Onboard Graphics:

• Integrated Graphics Processor-Intel® HD, 1 x DisplayPort, maximum resolution of 4096x2304@60 Hz

Audio:

• Realtek® ALC1220-VB CODEC
• ESS ES9118 DAC chip
• Support for DTS:X® Ultra
• High Definition Audio
• 2/4/5.1/7.1-channel
• Support for S/PDIF Out

Network:

• LAN Marvell® AQtion AQC113C 10GbE LAN chip (10 Gbps/5 Gbps/2.5 Gbps/1 Gbps/100 Mbps)

• Wireless Communication moduleWIFI Module
• WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
• BLUETOOTH 5.3
• Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate

Expansion Slots:

• 1 x PCI Express x16 slot, running at x16 (PCIEX16 slot conforms to PCI Express 5.0 standard.)

• 2 x PCI Express x16 slots, running at x4 (PCIEX4_1, PCIEX4_2) (PCIEX4 slots conform to PCI Express 3.0 standard.)

Storage Interface:

• CPU: 1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)
• 2 x M.2 connectors (Socket 3, M key, type 2260/2280/22110 PCIe 4.0 x4/x2 SSD support) (M2P_SB, M2Q_SB)
• 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 PCIe 3.0 x4/x2 SSD support) (M2C_SB)
• 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe 4.0 x4/x2 SSD support) (M2M_SB)
• 6 x SATA 6Gb/s connectors Support for RAID 0, RAID 1, RAID 5, and RAID 10

USB:

• 2 x USB Type-C® ports, with USB 3.2 Gen 2x2 support (1 port on the back panel, 1 port available through the internal USB header)
• 3 x USB 3.2 Gen 2 Type-A ports (red) on the back panel Chipset+USB 3.2 Gen 2
• 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2 support

• 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel Chipset+2 USB 3.2 Gen 1 Hubs:
• 8 x USB 3.2 Gen 1 ports (4 ports on the back panel, 4 ports available through the internal USB headers) Chipset+USB 2.0 Hub:
• 4 x USB 2.0/1.1 ports available through the internal USB headers

Internal I/O Connectors:

• 1 x 24-pin ATX main power connector
• 2 x 8-pin ATX 12V power connectors
• 1 x CPU fan header
• 1 x water cooling CPU fan header
• 4 x system fan headers
• 4 x system fan/water cooling pump headers
• 2 x addressable LED strip headers
• 2 x RGB LED strip headers
• 5 x M.2 Socket 3 connectors
• 6 x SATA 6Gb/s connectors
• 1 x front panel header
• 1 x front panel audio header
• 1 x USB Type-C® header, with USB 3.2 Gen 2x2 support
• 2 x USB 3.2 Gen 1 headers
• 2 x USB 2.0/1.1 headers
• 1 x noise detection header
• 2 x Thunderbolt™ add-in card connectors
• 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
• 1 x power button
• 1 x reset button
• 1 x reset jumper
• 1 x Clear CMOS jumper
• 2 x temperature sensor headers
• Voltage Measurement Points

Back Panel Connectors:

• 1 x Q-Flash Plus button
• 1 x Clear CMOS button
• 2 x SMA antenna connectors (2T2R)
• 1 x DisplayPort
• 1 x USB Type-C® port, with USB 3.2 Gen 2 support
• 1 x USB Type-C® port, with USB 3.2 Gen 2x2 support
• 5 x USB 3.2 Gen 2 Type-A ports (red)
• 4 x USB 3.2 Gen 1 ports
• 1 x RJ-45 port
• 1 x optical S/PDIF Out connector
• 5 x audio jacks

I/O Controller:

• iTE® I/O Controller Chip

H/W Monitoring:

• Voltage detection
• Temperature detection
• Fan speed detection
• Water cooling flow rate detection
• Fan fail warning
• Fan speed control
• Noise detection

BIOS:

• 1 x 256 Mbit flash
• Use of licensed AMI UEFI BIOS
• PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Features and APP Center:

• @BIOS
• EasyTune
• RGB Fusion
• Smart Backup
• System Information Viewer
• Support for Q-Flash Plus
• Support for Q-Flash
• Support for Xpress Install

Operating Systems:

• Support for Windows 11 64-bit
• Support for Windows 10 64-bit

Form Factor:

• E-ATX Form Factor; 30.5cm x 25.9cm
