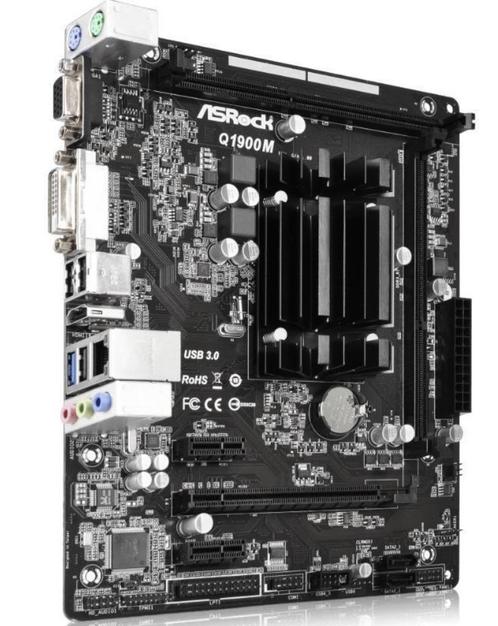

ASRock Q1900M onboard Quad-Core CPU

Eigenschappen: Moederbord | Micro-ATX| geintergreerde Intel Quad-Core Processor J1900 | DDR3 | SATA | PCI-e 2.0 x1 | PCI-e 2.0 x16 | USB2.0 | USB3.1 | D-Sub (VGA) | DVI | HDMI

Product: ASRock Q1900M
Aansluiting: Onboard CPU
Categorie: moederborden
Merk: ASRock
EAN:4717677323207
Staat: Refurbished – BIOS geüpdatet naar de nieuwste versie
SKU: 90-MXGTH0-A0UAYZ, Q1900M
Garantie: 6 maanden

pakketinhoud:
– Moederbord (ASRock Q1900M)
– IO-Shield (Blikken achterplaatje)
– Geen handleiding
– Geen cd met stuurprogramma’s
– Geen kabels

Unique Feature
– ASRock Full Spike Protection
– ASRock Cloud

CPU
– Intel® Quad-Core Processor J1900 (2 GHz)

Memory
– Dual Channel DDR3/DDR3L Memory Technology
– 2 x DDR3/DDR3L DIMM Slots
– Supports DDR3/DDR3L 1333/1066 non-ECC, un-buffered memory
– Max. capacity of system memory: 16GB

Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows® 32-bit OS. For Windows® 64-bit OS with 64-bit CPU, there is no such limitation.

If only one DIMM module is installed, please install it into DDR3_A1.

BIOS
– 64Mb AMI UEFI Legal BIOS with GUI support
– Supports Plug and Play
– ACPI 5.0 Compliant wake up events
– Supports jumperfree
– SMBIOS 2.7 Support

Graphics
– Intel® 7th generation (Gen 7) graphics
– DirectX 11.0, Pixel Shader 5.0
– Three graphics output options: D-Sub, DVI-D and HDMI
– Supports HDMI Technology with max. resolution up to 1920×1200 @ 60Hz
– Supports DVI-D with max. resolution up to 1920×1200 @ 60Hz
– Supports D-Sub with max. resolution up to 1920×1200 @ 60Hz
– Supports Auto Lip Sync, xvYCC and HBR (High Bit Rate Audio) with HDMI Port (Compliant HDMI monitor is required)
– Supports HDCP with DVI-D and HDMI Ports
– Supports Full HD 1080p Blu-ray (BD) playback with DVI-D and HDMI Ports

Audio
– 5.1 CH HD Audio (Realtek ALC662 Audio Codec)
– Supports Surge Protection (ASRock Full Spike Protection)

LAN
– PCIE x1 Gigabit LAN 10/100/1000 Mb/s
– Realtek RTL8111GR
– Supports Wake-On-WAN
– Supports Wake-On-LAN
– Supports Lightning/ESD Protection (ASRock Full Spike Protection)
– Supports LAN Cable Detection
– Supports Energy Efficient Ethernet 802.3az
– Supports PXE

Slots
– 1 x PCI Express 2.0 x16 Slot (PCIE2 @ x1 mode)
– 2 x PCI Express 2.0 x1 Slots

Storage
– 2 x SATA2 3.0 Gb/s Connectors, support NCQ, AHCI and Hot Plug

Connector
– 1 x Print Port Header
– 1 x COM Port Header
– 1 x TPM Header
– 1 x Chassis Intrusion Header
– 1 x CPU Fan Connector (3-pin)
– 1 x Chassis Fan Connector (3-pin)
– 1 x 24 pin ATX Power Connector
– 1 x Front Panel Audio Connector
– 2 x USB 2.0 Headers (Support 3 USB 2.0 ports) (Supports ESD Protection (ASRock Full Spike Protection))

Rear Panel I/O
– 1 x PS/2 Mouse Port
– 1 x PS/2 Keyboard Port
– 1 x D-Sub Port
– 1 x DVI-D Port
– 1 x HDMI Port
– 3 x USB 2.0 Ports (Supports ESD Protection (ASRock Full Spike Protection))
– 1 x USB 3.1 Gen1 Port (Supports ESD Protection (ASRock Full Spike Protection))
– 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
– HD Audio Jacks: Line in / Front Speaker / Microphone

Software and UEFI
Software
– ASRock A-Tuning
– ASRock APP Shop
– ASRock USB Key
– ASRock XFast LAN
– ASRock XFast RAM
– ASRock Restart to UEFI
UEFI
– ASRock Instant Flash
– ASRock Internet Flash
– ASRock Crashless BIOS

Accessories
– I/O Shield

Hardware Monitor
– CPU, Chassis temperature sensing
– CPU, Chassis Fan Tachometer
– CPU, Chassis Quiet Fan (Auto adjust chassis fan speed by CPU temperature)
– CPU, Chassis Fan multi-speed control
– CASE OPEN detection
– Supports CPU Fanless
– Voltage monitoring: +12V, +5V, +3.3V, CPU Vcore

Form Factor
– Micro ATX Form Factor
– All Solid Capacitor design
– High Density Glass Fabric PCB

OS
– Microsoft® Windows® 8.1 32-bit / 8.1 64-bit / 8 32-bit / 8 64-bit / 7 32-bit / 7 64-bit

Certifications
– FCC, CE
– ErP/EuP ready (ErP/EuP ready power supply is required)
