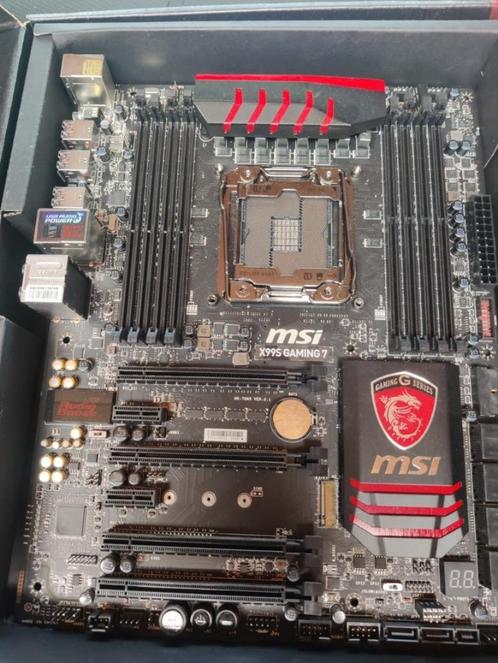

MSI X99S Gaming 7 motherboard - weinig gebruikt

OPRUIM : weinig gebruikt moederbord

msi.com/Motherboard/X99S-GAMING-7/Specification
.
CPU

• Supports New Intel® Core™ i7 Processor Extreme Edition for LGA2011-3 Socket
• Support lntel® Turbo Boost Max Technology 3.0

• Please refer to CPU Support for compatible CPU; the above description is for reference only.

Chipset

• Intel® X99 Express Chipset


Main Memory

• Support eight DDR4 2133/2200*/2400*/2600*/2666*/2750*/3000*/3110*/3333*(*OC)MHz DRAM, 128GB Max
- Quad channel memory architecture
- Supports non-ECC, un-buffered memory
- Supports RDIMM 1Rx8 memory module(Operates in non-ECC mode)

• Hyper DIMM support depends on the individual CPU physical characteristics

Slots

• 4 x PCIe 3.0 x16 slots, support up to 3-way mode
- 1-way mode: x16/ x0/ x0/ x0- 2-way mode: x16/ x16/ x0/ x0*, 16/ x8/ x0/ x0- 3-way mode: x16/ x16/ x0/ x8*, x8/ x8/ x8/ x0

• 2 x PCIe 2.0 x1 slots

• For the CPU that supports 40 PCIe lanes For the CPU that supports 28 PCIe lanes

Storage

• Intel X99 Express Chipset
• 10 x SATA 6Gb/s ports (2 x ports compatible with 1 x SATA Express port)*- SATA1~6 support RAID 0, RAID 1, RAID 5 and RAID 10- SATA7~10 ports only support IDE mode and AHCI mode.- Supports Intel® Smart Response Technology (Windows 7/ 8/ 8.1)• 1 x SATA Express port*• 1 x M.2 Key M Socket supports type 2280/2260/2242 storage devices in both PCIE Gen3 x4 & SATA mode- M.2 port supports 4.2cm/ 6cm/ 8cm length module- M.2 PCIe module does not support RAID 0, RAID1, RAID 5 and RAID 10.
