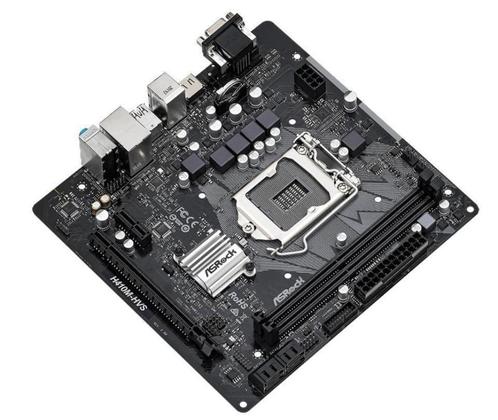

Asrock H410M-HVS R2.0 LGA1200

Asrock H410M-HVS R2.0: moederbord | Micro-ATX | Socket 1200 (10th Gen only) | H410 Chip Set | 2x DDR4 (64GB max) | PCIe 3.0 x16 | PCIe 3.0 x1 | SATA 600 | HDMI | DVI-D | VGA (D-Sub) | USB 3.2 Gen1 | USB 2.0

Product: Asrock H410M-HVS R2.0
Socket: LGA1200 (alleen geschikt voor 10th generatie processoren)
Categorie: Moederborden
Merk: ASRock
Staat: Refurbished
EAN: 4710483933455
SKU: 90-MXBFL0-A0UAYZ
Garantie: 6 maanden

pakketinhoud:
– Moederbord (Asrock H410M-HVS R2.0)
– IO-Shield (blikken achterplaatje)
– Geen handleiding
– Geen driver-cd
– Geen kabels

Unique Feature
ASRock Super Alloy
– Premium 50A Power Choke
– Sapphire Black PCB
– High Density Glass Fabric PCB
ASRock Full Spike Protection (for all USB, Audio, LAN Ports)
ASRock Live Update & APP Shop

CPU
– Supports 10th Gen Intel® Core™ Processors (Socket 1200)
– Digi Power design
– 5 Power Phase design
– Supports Intel® Turbo Boost Max 3.0 Technology

Chipset
– Intel® H410

Memory
– Dual Channel DDR4 Memory Technology
– 2 x DDR4 DIMM Slots
– Supports DDR4 2933 / 2800 / 2666 / 2400 / 2133 non-ECC, un-buffered memory
– Supports ECC UDIMM memory modules (operate in non-ECC mode)
– Max. capacity of system memory: 64GB
– Supports Intel® Extreme Memory Profile (XMP) 2.0
– 15μ Gold Contact in DIMM Slots

Core™ (i9/i7) support DDR4 up to 2933; Core™ (i5/i3), Pentium® and Celeron® support DDR4 up to 2666.

Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows® 32-bit OS. For Windows® 64-bit OS with 64-bit CPU, there is no such limitation.

BIOS
– 128Mb AMI UEFI Legal BIOS with multilingual GUI support
– ACPI 6.0 Compliant wake up events
– SMBIOS 2.7 Support
– CPU Core/Cache, GT, DRAM, PCH +1.0V, VCCST Voltage Multi-adjustment

Graphics
– Hardware Accelerated Codecs: AVC/H.264, HEVC/H.265 8bit, HEVC/H.265 10bit, VP8, VP9 8bit, VP9 10bit, MPEG 2, MJPEG, VC-1
– Graphics, Media & Compute: Microsoft® DirectX 12, OpenGL 4.5, Intel® Built In Visuals, Intel® Quick Sync Video, Hybrid / Switchable Graphics, OpenCL 2.1
– Display & Content Security: Rec. 2020 (Wide Color Gamut), Microsoft® PlayReady 3.0, Intel® SGX Content Protection, UHD Blu-ray Disc
– Dual graphics output: support HDMI and D-Sub ports by independent display controllers
– Supports HDMI 1.4 with max. resolution up to 4K x 2K (4096×2160) @ 30Hz
– Supports D-Sub with max. resolution up to 1920×1200 @ 60Hz
– Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI 1.4 Port (Compliant HDMI monitor is required)
– Supports HDCP 2.3 with HDMI 1.4 Port
– Supports 4K Ultra HD (UHD) playback with HDMI 1.4 Port

Intel® UHD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated.

VP9 10bit and VC-1 are for decode only. VP8 and VP9 encode are not supported by Windows® OS.

Audio
– 7.1 CH HD Audio (Realtek ALC887/897 Audio Codec)
– Supports Surge Protection

LAN
– Gigabit LAN 10/100/1000 Mb/s
– Giga PHY Intel® I219V
– Supports Wake-On-LAN
– Supports Lightning/ESD Protection
– Supports Energy Efficient Ethernet 802.3az
– Supports PXE

Slots
– 1 x PCI Express 3.0 x16 Slot
– 1 x PCI Express 3.0 x1 Slot

Supports NVMe SSD as boot disks

Storage
– 4 x SATA3 6.0 Gb/s Connectors, support NCQ, AHCI and Hot Plug

Connector
– 1 x SPI TPM Header
– 1 x Chassis Intrusion and Speaker Header
– 1 x CPU Fan Connector (4-pin)
– 1 x Chassis/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)
– 1 x 24 pin ATX Power Connector
– 1 x 8 pin 12V Power Connector
– 1 x Front Panel Audio Connector
– 1 x USB 2.0 Header (Supports 2 USB 2.0 ports) (Supports ESD Protection)
– 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD Protection)

The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power.

The Chassis/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power.
CHA_FAN1/WP can auto detect if 3-pin or 4-pin fan is in use.

Rear Panel I/O
– 1 x PS/2 Mouse/Keyboard Port
– 1 x D-Sub Port
– 1 x HDMI Port
– 4 x USB 2.0 Ports (Supports ESD Protection)
– 2 x USB 3.2 Gen1 Ports (Supports ESD Protection)
– 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
– HD Audio Jacks: Line in / Front Speaker / Microphone

Software and UEFI
Software
– ASRock Motherboard Utility (A-Tuning)
– ASRock XFast LAN
UEFI
– ASRock EZ Mode
– ASRock Full HD UEFI
– ASRock My Favorites in UEFI
– ASRock Instant Flash
– ASRock Internet Flash

These utilities can be downloaded from ASRock Live Update & APP Shop.

Accessories
–  I/O Shield

Hardware Monitor
– Temperature Sensing: CPU, Chassis/Water Pump Fans
– Fan Tachometer: CPU, Chassis/Water Pump Fans
– Quiet Fan (Auto adjust chassis fan speed by CPU temperature): CPU, Chassis/Water Pump Fans
– Fan Multi-Speed Control: CPU, Chassis/Water Pump Fans
– CASE OPEN detection
– Voltage monitoring: +12V, +5V, +3.3V, CPU Vcore, PCH +1.0V

Form Factor
– Micro ATX Form Factor: 7.76-in x 7.4-in, 19.7 cm x 18.8 cm
– Solid Capacitor design

OS
– Microsoft® Windows® 10 64-bit / 11 64-bit

Certifications
– FCC, CE
– ErP/EuP ready (ErP/EuP ready power supply is required)
