Moederboard/Motherboard MSIX299 GamingPro Carbon AC te koop.

Moederboard/Motherboard MSIX299 GamingPro Carbon AC te koop.

Ik verkoop mijn Moederboard MSI X299 Gaming Pro Carbon AC (tot 256GB RAM: klaar voor i9 Intel CP socket 2066, Wi-Fi netwerkkaart en Bluetooth).

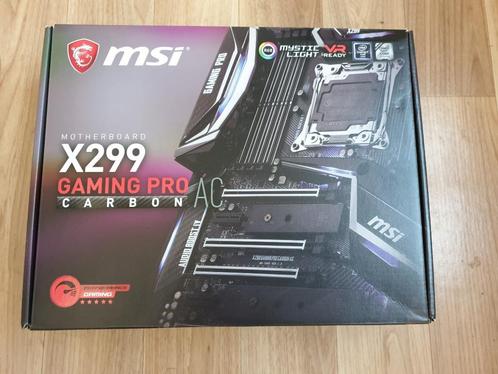

Met originele verpakking en alle accessoires, inclusief WiFi en Bluetooth antennes.

Staat: zo goed, zoals nieuw.
Werkt perfect.
Men kan alle laatste games met dit MB spellen en tegelijkertijd live streaming doen.

Prijs: 279 euro.


Reageer snel.
Ophalen te Antwerpen of verzenden (+10 euro in België)
GSM: 0471357227

Eigenschappen:

PROCESSOR:

Supports Intel® Core™ X-Series Processor Family for LGA2066 Socket from Intel Core i7 up to i9-10980XE (18 Cores 36 thread up to 4.8GHz Unlocked)

CHIPSET
Intel® X299 Chipset

MEMORY
Intel® Core™ X-series Processors (6-core above CPU 78XX/79XX)
8 x DDR4 memory slots, support up to 256GB
Quad channel memory architecture with the CPU that supports up to 4-channels DDR4
X-series processor support DDR4 4133+(OC)/4000(OC)/3866(OC)/3800(OC)/3733(OC)/3600(OC)/3466(OC)/ 3400(OC)/3333(OC)/3200(OC)/3000(OC)/2933(OC)/2800(OC)/2667/2400/2133 MHz
Intel® Core™ X-series Processors (4 core CPU i7-7740X/i5-7640X)
4 x DDR4 memory slots, support up to 64GB
Dual channel memory architecture with the CPU that supports up to 2-channels DDR4
X-series processor support DDR4 4500+(OC)/4400(OC)/4333(OC)/4266(OC)/4200(OC)/4133(OC)/4000(OC)/ 3866(OC)/3800(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200(OC)/3000(OC)/2933(OC)/2800(OC)/2667/2400/2133 MHz
Supports Intel® Extreme Memory Profile (XMP)
See supported memory

SLOTS
4 x PCIe 3.0 x16 slots
Support x16/ x4/ x16/ x8 mode with the 48/44-lane CPU.
Support x16/ x4/ x8/ x0,x8/ x4/ x8/ x8 modes with the 28-lane CPU.
Support x8/ x0/ x8/ x0, x8/ x4/ x4/ x0 modes with the 16-lane CPU.
2 x PCIe 3.0 x1 slots
MULTI-GPU
Supports 3-Way AMD® CrossFire™ Technology
Supports 3-Way NVIDIA® SLI™ Technology
STORAGE
Intel® X299 Chipset
8 x SATA 6Gb/s ports1
2 x M.2 slots (Key M)1
Supports up to PCIe 3.0 x4 and SATA 6Gb/s
M2_1 slot supports 2242/ 2260 /2280 storage devices
M2_2 slot supports 2242/ 2260 /2280/ 22110 storage devices
Intel® Optane™ Memory Ready2
1 x U.2 port 1
Supports PCIe 3.0 x4 NVMe storage
Supports Intel® Smart Response Technology3
M.2 slots, U.2 port and SATA ports share the same bandwidth.Please refer to manual for Intel® Optane™ Memory Configuration.The functions will be supported depend on the CPU.
RAID
Intel® X299 Chipset
Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
Supports RAID 0 and RAID 1 for M.2 storage devices1
M.2 slots, U.2 port and SATA ports share the same bandwidth.
USB
ASMedia® ASM3142 Chipset
1x USB 3.1 Gen2 (SuperSpeed USB 10Gbps) Type-A port on the back panel
2x USB 3.1 Gen2 (Super Speed USB 10Gbps) Type-C ports(1 port on the back panel, 1 port available through the internal USB connector)
ASMedia® ASM1074 Hub
3x USB 3.1 Gen1 (SuperSpeed USB) Type-A ports on theback panel
Intel® X299 Chipset
5x USB 3.1 Gen1 (SuperSpeed USB) ports (1 port on the back panel, 4 ports available through the internal USB connectors)
7x USB 2.0 (High-speed USB) ports (3 ports on the back panel, 4 ports available through the internal USB connectors)
WIRELESS LAN & BLUETOOTH®
Intel® Dual Band Wireless-AC 8265 module (optional)
The Wireless module is pre-install in the M2_3 (Key-E) slot.
Supports Wi-Fi 802.11 a/b/g/n/ac, dual band (2.4GHz, 5GHz) up to 867 Mbps speed.
Supports Dual Mode Bluetooth® 2.1, 2.1+EDR, 3.0, 4.0, BLE, 4.2
AUDIO
Realtek® ALC1220 Codec
7.1-Channel High Definition Audio
Supports S/PDIF output
LAN
1 x Intel® I219-V Gigabit LAN controller
INTERNAL CONNECTORS
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x 4-pin ATX 12V power connector
8 x SATA 6Gb/s connectors
3 x M.2 slots (Key M x2, Key E x1)
1 x U.2 port
2 x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
2 x USB 3.1 Gen1 connectors (supports additional 4 USB 3.1 Gen1 ports)
1 x USB 3.1 Gen2 Type-C port
1 x 4-pin CPU fan connector
1 x 4-pin Water Pump connector
4 x 4-pin system fan connectors
1 x Front panel audio connector
2 x Front panel connectors
1 x TPM module connector
1 x Chassis Intrusion connector
1 x Clear CMOS jumper
1 x Slow mode booting jumper
1 x GAME BOOST knob
1 x Power button
1 x Reset button
1 x Multi-BIOS switch
1 x RGB LED connector
1 x Virtual RAID on CPU connector (VRAID1)
BACK PANEL PORTS
Clear CMOS Button
Keyboard / Mouse
Intel Wi-Fi & Bluetooth
Intel® Gigabit LAN
Golden Audio Connectors
Flash BIOS Button
USB 2.0
USB 2.0 / Flash BIOS
USB 3.1 Gen1
USB 3.1 Gen2 Type-A/C
Optical S/PDIF-Out
MSI X299 GAMING PRO CARBON AC back panel ports
DIMENSIONS
12 in. x 9.6 in. (30.5 cm x 24.4 cm)
ATX Form Factor
MOUNTING
9 mounting holes DDR4-4133(OC)+, Dual Channel
DDR4-4500(OC)+
Expansion slots 2 x PCI-E 3.0 x1 slots
SATA / M.2 / U.2 8x SATA 6Gb.s ports, 2x Turbo
M.2 slots, 1x Turbo U.2 connector
Intel® Optane™ Intel®
Optane™ Memory Ready
USB 3.1 Gen2 3 x USB 3.1 Gen2 (Type A+C)
USB 3.1 Gen1 8 x USB 3.1 Gen1
USB 2.0 7 x USB 2.0
LAN Intel®
I219-V Gigabit LAN
Wireless / BT Intel®
Wireless-AC 8265,
Bluetooth 4.2
Audio 7.1 Channel High Definition Audio with S/PDIF
Form Factor ATX
