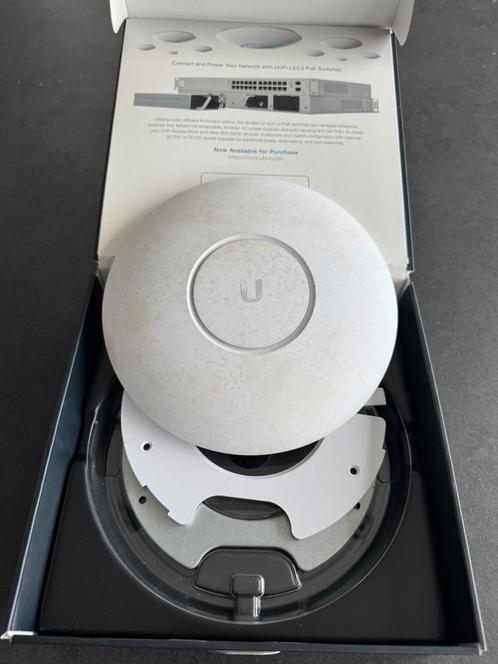

Unifi UAP-AC-PRO wifi 5 access point

Unifi UAP-AC-PRO wifi 5 access point
Zonder injector
Volledig werkend.
Omhuizing heeft last van verkleurde vlekken.

Dimensions
Ø196.7 x 35 mm
(Ø7.7 x 1.4")
WiFi Standard
WiFi 5
Spatial Streams
6
Coverage Area
140 m² (1,500 ft²)
Max. Client Count
250+
Uplink
GbE
Mounting
Ceiling, Wall
(Pro Mount Supported)
Power Method
PoE

Performance
MIMO
5 GHz
3 x 3 (DL MU-MIMO)
2.4 GHz
3 x 3 (DL MU-MIMO)
Max. Data Rate
5 GHz
1.3 Gbps (BW80)
2.4 GHz
450 Mbps (BW40)
Antenna Gain
5 GHz
3 dBi
2.4 GHz
3 dBi
Max. TX Power
5 GHz
22 dBm
2.4 GHz
22 dBm
Max. BSSIDs
8 per Radio
Supported Data Rates
802.11ac (WiFi 5)
6.5 Mbps to 1.3 Gbps (MCS0 - MCS9 NSS1/2/3, VHT 20/40/80)
802.11n
6.5 Mbps to 450 Mbps (MCS0 - MCS23, HT 20/40)

Features
Wireless Meshing
✓
Band Steering
✓
802.11v BSS Transition Management
✓
802.11r Fast Roaming
✓
802.11k Radio Resource Management (RRM)
✓
Advanced Radio Management
✓
Passpoint (Hotspot 2.0)
✓
Captive Hotspot Portal
Custom Branding Landing Page
✓
Voucher Authentication
✓
Payment-Based Authentication
✓
External Portal Server Support
✓
Password Authentication
✓
Guest Network Isolation
✓
Private Pre-Shared Key (PPSK)
✓
WiFi Speed Limiting
✓
Client Device Isolation
✓
WiFi Schedules
✓
RADIUS over TLS (RadSec)
✓
Dynamic RADIUS-assigned VLAN
✓

Hardware
Max. Power Consumption
9W
Includes PoE Adapter
✓
Supported Voltage Range
44—57V DC
Networking Interface
(2) GbE RJ45 ports
Weight
Device: 350 g (12.4 oz)
With mount: 450 g (15.9 oz)
Management
Ethernet
Enclosure Material
Polycarbonate
LEDs
System
Status
Channel Bandwidth
HT 20/40, VHT 20/40/80 (MHz)
NDAA Compliant
✓
Certifications
CE, FCC, IC
Operating Frequency
US/CA:
2400 - 2472 MHz
U-NII-1: 5150 - 5250 MHz
U-NII-2A: 5250 - 5350 MHz
U-NII-2C: 5470 - 5725 MHz
U-NII-3: 5725 - 5850 MHz

Worldwide:
2400 - 2483.5 MHz
5150 - 5725 MHz
Ambient Operating Temperature
-10 to 70° C (14 to 158° F)
Ambient Operating Humidity
5 to 95% noncondensing
