Revopoint Miraco Pro (32GB) 3D scanner complete set

Werd nieuw aangekocht voor bijberoep, echter onverwacht bijberoep moeten stopzetten wegens verhuis naar sociale woning en zit anders boven inkomenslimiet. Werd nooit gebruikt

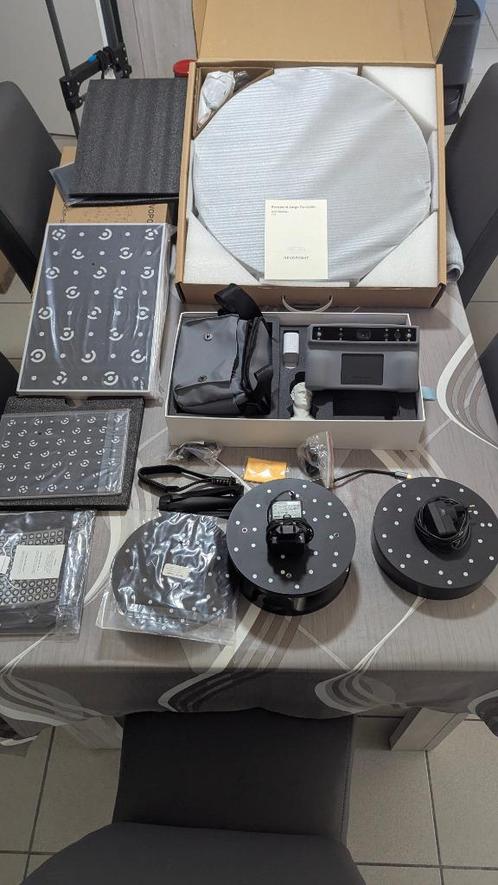

Deze set is ONGEBRUIKT en nieuw. Bevat:


Revopoint Miraco Pro 3D scanner twv 1459€ kit (incl tripod, mini turntable, near mode calibration board, magic mat, pols strap, lader en scanner tas)

2 bussen AESUB scanning spray @ 39.99/st

Large Turntable (tot 200kg) @ 446€

Dual-Axis Turntable @ 115€

Portable Turntable @ 39€

High Precision Large Calibration Board Kid @ 49€


Een totale waarde van 2188€. Wordt enkel als COMPLETE SET verkocht en enkel ophalen. (vervang hxxps door https voor werkende links)

Specs via officiële website

Product: Revopoint MIRACO Pro hxxps:global.revopoint3d.com/en-eur/pages/standalone-3d-scanner-miraco
Technology: Quad-camera Infrared Structured Light
Single-frame Accuracy: up to 0.05 mm
Fused Point Distance: up to 0.05 mm
Single Capture Area at Nearest Distance: 28 x 53 mm at 100 mm
Single Capture Area at Furthest Distance: 975 x 775 mm at 1000 mm
Two Capture Modes: Single-shot Mode, Continuous Capture Mode
Scanning Speed, up to: 15 fps
Minimum Scan Volume: 10 x 10 x 10 mm
Maxmium Scan Volume: 4 × 4 × 4 m
Working Distance: 100 - 1000 mm
Screen: 6” 2k AMOLED Touch Screen
Auxiliary Lighting: Infrared Fill Lights, White Flash LEDs
3D Light Source: Class 1 Infrared Light
Storage: 256 GB eMMC
Position Sensors: 9-axis IMU
Memory (RAM): 32 GB DDR4
RGB Camera Resolution, up to: 48 Megapixels
Scanner Weight: 750 g
Dimensions（L x W x H): 200 x 50 x 110 mm
Battery Capacity : Internal lithium Battery 5,000 mAh,
supporting up to 2-hour continuous scanning
CPU : 8-core CPU，2.4 GHz
Tracking Methods: Feature , Marker, Global Marker
Protection Rating: IP45
Connector Type: USB Type-C
Wi-Fi Type: Wi-Fi 6
Compatible Operating Systems: Windows 10/11 (64-bit), macOS 11.0 or better
Operating System : Native Android System
Special Object Scanning: Use scanning spray for transparent, dark, or highly reflective objects
Scanning Environment: Indoors and Outdoors
Output File Formats: PLY, OBJ, STL, ASC, 3MF, GLTF, FBX
3D Printing Compatible: Yes
Built in Chip Computing : Depth Map Computing, 3D Scanning, Point Cloud Processing and Editing
Mobile Requirements: N/A
Minimum PC Requirements:
macOS
CPU: M1 Pro or better;
RAM ≥ 8GB

Recommended PC Requirements
Windows
CPU: Intel i7 12th Gen or better;
RAM ≥ 16GB

Scanning Spray hxxps:global.revopoint3d.com/en-eur/products/scanning-spray

Name: Scanning Spray
Brand: AESUB
Compatible Devices: POP, POP 2, POP 3, POP 3 Plus, MINI, MINI 2, INSPIRE, MIRACO, MIRACO Pro, RANGE, RANGE 2, MIRACO Plus, MetroX
Behavior: Vanishing/Volatile
Container: Can
Volume: 400ml
Scannable Time: ≤ 1h
Sublimation Time: ≤ 4h
Approx. Layer Thickness: 8-15um
Working Temperature: 21 ℃ (69.8 ℉)
Hazardous Labeling: Flammable
Recommended For: Structured Light and Laser Scanning
To be Applied: Manually, via Spray Can

Large Turntable: hxxps:global.revopoint3d.com/en-eur/products/large-turntable

Specificaties:
Product Name: Large Turntable
Parts Included: Large Turntable × 1, Remote Controller × 1,
Power Cable × 1, Adapter × 1
Power Output: 24V/3A
Compatible Devices: POP, POP 2, POP 3, RANGE, RANGE 2, INSPIRE, MIRACO, MIRACO Pro, POP 3 Plus, MIRACO Plus, MetroX
Dimensions: (D) 500 mm × (H) 100 mm
Speed: 35 - 90 Seconds per Rotation
Max Load: 200 kg (≈ 441 lbs)
Weight: 7 kg (≈ 15.4 lbs)
Control Method: Via Remote Controller / App Over Bluetooth
Rotation Control: Direction, Speed and Start/Pause
Noise: ≤ 55 (db)
Main Materials: ABS + PS


Dual Axis Turntable: hxxps:global.revopoint3d.com/en-eur/products/dual-axis-turntable

Specifications
Product Name: Dual-axis Turntable
Parts Included: Multi-region Adapter × 1, Turntable Topper × 1,
Dual-axis Turnable × 1,: Power Cable × 1, Reusable Sticky Pad × 1
Model: A230-Ⅱ
Power Output: 12V/2A
Compatible Devices: POP, POP 2, POP 3, MINI, RANGE, INSPIRE,
MIRACO, MIRACO Pro, RANGE 2, MINI 2, POP 3 Plus, MIRACO Plus, MetroX
Dimensions: (D) 200 mm × (H) 82 mm
Weight: About 771 g (≈ 1.7 lbs)
Turntable Speed: 18 - 90 Seconds per Rotation
Max Load: 5 kg (≈ 11 lbs)
Color: Black
Rotation Control: Via Buttons / APP (Revo scan/Revo assistant)
Controls: Direction, Tilt, Speed, and Start / Pause

Portable Turntable: hxxps:global.revopoint3d.com/en-eur/products/potable-turntable

Specifications

Product Name: Portable Turntable
Parts Included: Mini Turntable × 1, Reusable Sticky Pad × 1, Turntable Power Cable (USB Type-A to Type-C) × 1, Extended Table × 1
Compatible Devices: POP, POP 2, POP 3, MINI, RANGE, INSPIRE,
MIRACO, MIRACO Pro, RANGE 2, MINI 2, POP 3 Plus, MIRACO Plus, MetroX
Material: ABS
Color: Black
Power Output: 5V/1A
Dimensions: (D) 125 mm × (L) 42 mm
Power Supply: USB Power Supply
Function: Motorized 360° Rotation
Weight: 315 g (≈ 0.7 lbs)
Max Load: 2.5 kg (≈ 5.5 lbs)

High Precision Large Calibration board kit hxxps:global.revopoint3d.com/en-eur/products/large-calibration-board-miraco

Specifications

Name: Large Calibration-board Kit
Compatible Devices: MIRACO, MIRACO Pro, MIRACO Plus
Parts Included: Calibration Board × 4, Large Calibration-board Sheet × 1
1) Calibration Board
Size: 410 × 260 × 8 mm
Material: PVC
Weight: 1500 g

2) Large Calibration-board Sheet
Size: 1000 x 800 mm
Material: PE
