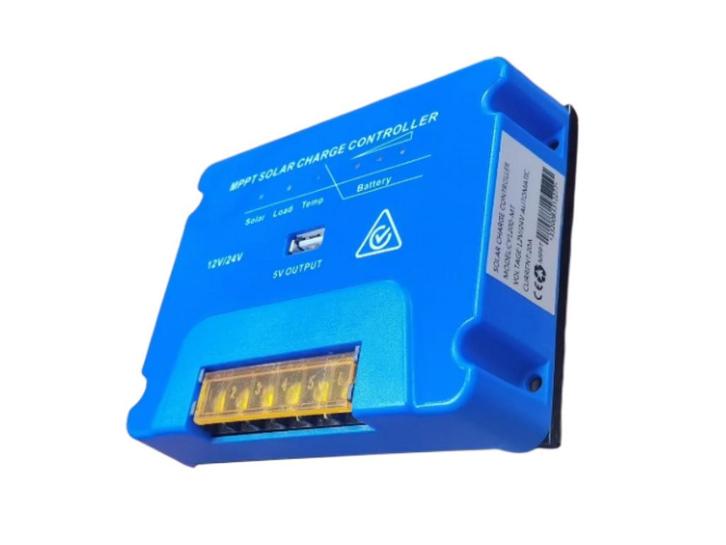

MPPT Laadstroomregelaar 12/24 volt 15Ah

Specification: MPPT,LCD display,RS485,12/24V system voltage * Innovative MPPT technology,tracking efficiency 99.9%,conversion efficiency up to 97% * Real-time display the operational data and working status of the controller in digital,graphic and textual forms by a large LCD * AGM,Gel,Liquid battery to choose * Two navigation buttons,easy to implement various operations * 12V/24V automatic,recognition,Temperature compensation,Perfect EMC design * Four stage charge way:MPPT,boost,equalization,float * Full automatic electronic protect function Specification:     MT1550EU                 Battery Parameters System voltage 12V Max charging current 15A MPPT charging voltage <14.5V@25 Boost voltage 14.5V@25 Equal voltage 14.8V@25 Float voltage 13.7@25 Low voltage disconnect 10.8~11.8V;SOC1~5 Low voltage reconnect 11.6~12.8V Over charge protect 15.5V Max battery voltage 20V Temp copensation -4.17mV/K per cell(Boost,Equal),-3.33mV/K per cell(Float) Battery type AGM,Liquid,GEL       Panel Parameters Max solar voltage 35V Max input power 200W Dusk/Dawn detect volt. 8.0V MPPT tracking range (Battery Voltage+1.0V)~Voc*0.9*     Load Output current 10A USB interface 5V,2A Work mode Standard,D2D,Street lamp,User-defined mode             System Parameters Max tracking efficiency >99.9% Max charge conversion 96.5% Dimensions(mm) 189*96*53 Weight 480g Self consumption 7mA Ambient temperature -20~+55 Storage temperature -25~+80 Ambient humidity 0~100%RH Protection degree IP32 Max altitude 4000m
