Receiver - versterker. Gebruikt maar werkt nog perfect!

Data

General

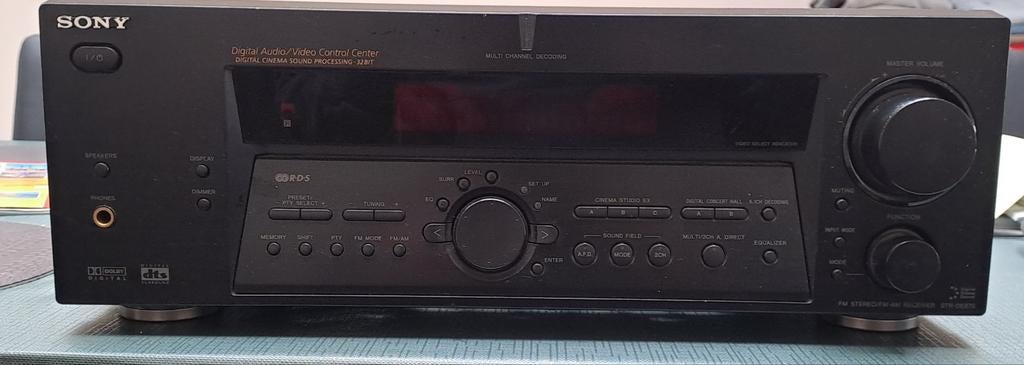

Manufacturer: Sony

Model: STR-DE 875

Type: A/V receiver

Years of manufacture: 2001 - 2003

Manufactured in:

Colors: Silver, Black

Remote control: yes

Power consumption: 220W / 0.9W standby

Dimensions: 430 x 157,5 x 369 mm (WxHxD)

Weight: 9.5 kg

Original price approx.: 1'100 DM


Connections

Number of inputs:

1 x Phono in (4mV/50k), 6xLineIn (250mV/50k), 1xMultichannel In (250mV/50k), 3xoptical In Digital, 1xcoaxial In Digital (50Ohm).

Number of outputs:

list the outputs here (with level/impedance).


Technical Data

Audio/Video

Channels: 5

TV standard: PAL/SECAM/NTSC

A/D converter:

D/A converter:

Output power (at distortion).

Stereo: 2x100W (0.7%)

Front: 2x100W

Center: 100W

Rear: 100W

Surround Back: -

Dynamic power (with distortion factor)

Stereo:

Front:

Center:

Rear:

Surround Back:

Total harmonic distortion factor:

Attenuation Factor:

Frequency Response: 10Hz - 50kHz (+0.5/-3db).

Signal to Noise Ratio: 96db

Stereo Channel Separation:

Tone control:

Bass: 99Hz-1kHz, 21stages (+-10db).

Mids: 198Hz-10kHz, 37 steps (+-10db) Treble: 1kHz-10kHz, 23 steps (+-10db).

Loudness:

High Filter:

Low Filter (Subsonic):

Mute: yes

Direct/Line-Straight: yes

Time Correction: yes

Bass Management: (adjustable crossover frequency)

Delay adjustment (Lip Sync):

DSP programs: yes


Tuner

Reception: FM/MW

Frequencies:

FM: 87.5 - 108 MHz

MW: 531 - 1602 kHz

Frequency response: 30Hz - 15kHz

Input sensitivity: Mono: 2.2µV, Stereo: 22.5µV

Distortion factor: Mono: 0,3%, Stereo 0,5% Signal to noise ratio: Mono: 76db, Stereo: 70db

Channel separation: 45db (1kHz)

selectivity: 60db (400kHz)

Co-wave selection:

Spurious wave selection:

IF attenuation:

IF attenuation:

AM suppression:

Output level:

RDS: yes

Station memory:
