Goed werkend

General

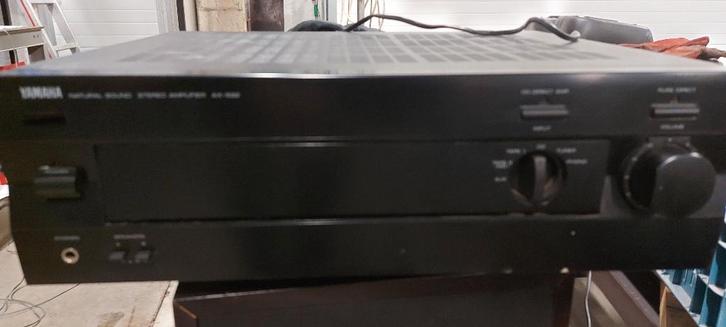

Manufacturer: Yamaha

Model: AX-592

Type: Integrated amplifier

Years of manufacture: 1997 - 2000

Made in: Malaysia

Color: Black, Titanium

Remote control: yes

Power consumption: 220 W

Dimensions: 435 × 151 × 396 mm (W×H×D)

Weight: 10.6 kg

Original price approx.: 700 DM

Connections

Number of inputs:

Phono MM/MC 2.5 mV / 47 kOhm,

Phono MM/MC 160 µV / 220 Ohm

CD, Tuner, AUX, 2 × Tape 150 mV / 47 kOhm

Main-In 1V / 30 kOhm

Number of outputs:

2 × Loudspeaker

2 × Rec-Out 150 mV / 600 Ohm

Pre-Out 1V / 1,2 kOhm

Headphones 0.33 V / 680 Ohm

Technical Data

Continuous power (at distortion)

8 ohms: 2 × 100 watts at 0.015

4 Ohm: 2 × 155 Watt (DIN)

Dynamic power

8 Ohm: 2 × 140 Watt

4 Ohm: 2 × 220 Watt

Total harmonic distortion: 0.008 %

Attenuation factor: 320

Frequency response: 10-50,000 Hz

Screening double capacitors: 24,000 μF (12,000 μF × 2)

Signal-to-noise ratio: 110 dB

Stereo channel separation: 65 dB

Tone control:

Bass: ±10 dB at 20 Hz

Treble: ±10 dB at 20,000 Hz

Loudness: Adjustable

High Filter: No

Low Filter (Subsonic): 15 Hz / 18 dB, switchable

Mute: No

Direct/Line-Straight: CD-Direct and Pure-Direct

Special Features

8 power transistors

Record Selector

secondary controls under cover flap
