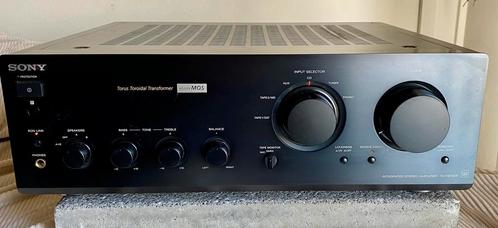

Sony TA-FB730R versterker

Goede werkende Sony TA-FB730R versterker Kan getest en beluisterd worden. General

Manufacturer: Sony
Model: TA-FB730 R
Year of manufacture: around 1998
Type: Amplifier

System:
Power amplifier: complementary SEPP-OCL power amplifier with direct coupling of all stages.
Preamplifier: low-noise equalization amplifier

Remote control: yes
Power supply: 230 V AC, 50/60 Hz
Power consumption: 180 W
Dimensions: 430 mm × 150 mm × 410 mm (W × H × D)
Weight: 8.6 kg
Colour:
Original price approx:

Connections

Number of inputs: 6 (Cinch)
Phono
Tuner
CD Aux

Tape1 / DAT
Tape2 / MD
Number of outputs: 2 (Cinch)
Tape1 / DAT
Tape 2 / MD

Headphones (6.3 mm jack)

Technical Data

Rated output power (DIN)
8 Ohm at 1 kHz: 60 W + 60 W

4 Ohm at 1 kHz: 100 W + 100 W
Total harmonic distortion: <0.008 % at 10 W output power
Frequency response:
Phono (20-20,000 Hz): RIAA equalizer curve ±0.5 dB.
Tuner, CD, Aux, Tape1 / DAT, Tape2 / MD: 7-100,000 Hz ±0.3 dB
Signal-to-noise ratio (network):
Phono: 90 dB
Tuner, CD, Aux, Tape1 / DAT, Tape2 / MD: 105 dB

Output voltage/impedance:
Rec Out 1, 2: 150 mV, 1 kOhm
Phones: 10 mW (into 8 ohms).
Tone control:
Bass: ±10 dB
Treble: ±10 dB

Balance
Loudness: yes
Subsonic: yes
