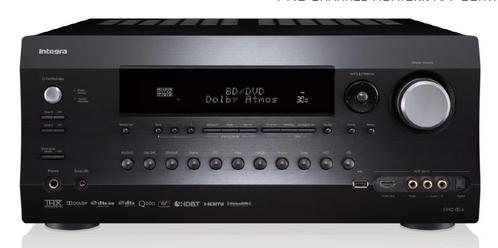

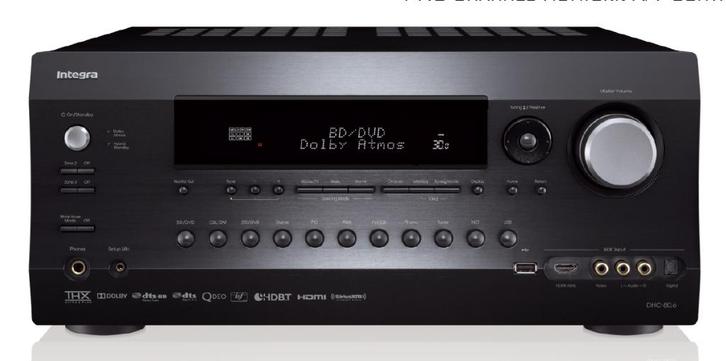

Integra DHC-80.6 11.2 Network A/V Controller [THX Ultra2]

High end voorversterker / av processor voor de beste beeld- en geluidskwaliteit op vlak van home cinema. THX Ultra2 gecertificeerde component.

Géén receiver, dus geen versterking ingebouwd. Je dient hem te koppelen aan je eigen eindtrappen.
Zéér goede staat met originele verpakking, en accessoires. Ik heb de vergelijking reeds voor u gemaakt en bied het hier aan voor een eerlijke, vaste prijs.

Advanced Features

• Supports Dolby Atmos® Surround Format for Exciting Multiplex Sound
• THX® Ultra2™ Plus Certified for Theater-Reference Audio Quality
• ISF (Imaging Science Foundation) Video Calibration for Optimal Video Performance
• Toroidal Transformer and Two Separate Transformers for Audio and Video Processing
• Separate Processing Block Construction
• 4K/60 Hz-Capable HDMI® Terminals for Ultra HD Entertainment
• Supports HDCP 2.2
• Copy Protection for Future 4K Streaming and Broadcast
• HDBaseT™ Port for Multimedia Distribution Assignable to Main Zone or Zone 2
• Fully Discrete Output Stage Circuitry
• 11.4-Channel Balanced XLR Pre-Outs (Front L / R), Audio-Grade 18 mm-pitch RCA Pre-Outs (Front L / R), and 11.4 Multichannel Pre-Outs
• 2-Channel Balanced XLR Audio Inputs (Mono Selectable)
• Hand Selected, Audio Tuned Parts to Ensure Low-Impedance, High-Current Performance
• Customized Low-Noise, High-Performance Transformer and Audio Tuned Custom Capacitors
• 3 x HDMI Outputs Including Zone 2 HDMI for HD Video in a Second Room
• Internet Radio and Music Streaming Subscription Services Included (TuneIn Radio, Pandora®, Slacker™, SIRIUS XM Internet Radio®, Spotify, and AUPEO!)
• Play MP3, WMA, WMA Lossless, FLAC, WAV, Ogg Vorbis, AAC, Apple Lossless, DSD 5.6 MHz, LPCM, and Dolby® TrueHD via Local Network
• Control and Stream with Free Integra Remote Streaming Apps for iPod touch® / iPhone® and Android Devices
• HDMI Video Upscaling to 4K with Qdeo™ Processing Technology by Marvell
• AccuEQ Room Calibration with Mic for Clear and Balanced Sound

Other Features

• DTS Neo:X™ Upmixing and Surround Modes
• HDMI for 4K / 60 Hz Video, 3D, Audio Return Channel, DeepColor™, x.v.Color™, LipSync, Dolby Atmos, Dolby® TrueHD, DTS-HD Master Audio™, DVD-Audio, Super Audio CD, Multichannel PCM, and CEC
• 7 x TI Burr-Brown 192 kHz / 32-bit Two-Channel D/A Converters
• Dual 32-bit Digital Signal Processing Engines
• Advanced Music Optimizer to Improve Compressed Digital Audio Quality
• PM (Phase-Matching) Bass Boost for Deep Bass and Clear Mid-Range
• 4 DSP Modes for Gaming: Rock, Sports, Action, and RPG (Role-Playing Game)
• 8 HDMI Inputs (1 Front / 7 Rear) and 3 Outputs
• Frontside HDMI / MHL™ for 1080p Video and Stills from Smartphone and Tablet
• USB Port (Front) for Mass Storage Class USB Memory Audio Playback Capability
• Component Video Switching (2 Inputs and 1 Output)
• 4 Composite Video Inputs (1 Front / 3 Rear) and 2 Outputs (Including Zone 2)
• 6 Digital Audio Inputs (3 Optical and 3 Coaxial)
• 7 Analog Audio Inputs (1 Front / 6 Rear)
• Phono Input (MM) for Turntable Connection
• 4 Parallel Subwoofer Pre-Outs
• Overlaid Input Source Preview with InstaPrevue™ Technology
• Overlaid On-Screen Display (OSD) with Quick Set-Up and Home Menu
• Hybrid Standby with HDMI Passthrough and Network Connectivity
• Independent Crossover Adjustment for Each Channel

(40 / 45 / 50 / 55 / 60 / 70 / 80 / 90 / 100 / 110 / 120 / 130 / 150 / 200 Hz)

• A/V Sync Control (Up to 600 ms in 1 ms Steps at 48 kHz)
• Tone Control (Bass / Treble) for All Channels
• Compatible with RI Dock for iPod / iPhone and AirPlay (DMI-40.4)
• Bi-Directional, Preprogrammed, and Customizable RI Remote Control

Specifications
Amplifier Section

• THD+N (Total Harmonic Distortion + Noise): 0.08% (20 Hz–20 kHz, Half Power)
• Damping Factor: 60 (Front, 1 kHz, 8 Ohms)
• Input Sensitivity and Impedance: 200 mV / 47 k-Ohms (Line), 2.5 mV / 47 k-Ohms (Phono MM)
• Rated RCA Output Level and Impedance: 200 mV / 470 Ohms (Pre Out)
• Maximum RCA Output Level and Impedance: 4.6 V / 470 Ohms (Pre Out)
• Rated XLR Output Level and Impedance: 400 mV / 470 Ohms (Pre Out)
• Maximum XLR Output Level and Impedance: 9.2 V / 470 Ohms (Pre Out)
• Phono Overload: 70 mV (MM 1 kHz, 0.5%)
• Frequency Response: 5 Hz–100 kHz / +1 dB, -3 dB (Direct Mode)
• Tone Control: ±10 dB, 50 Hz (Bass) ±10 dB, 20 kHz (Treble)
• Signal-to-Noise Ratio: 110 dB (Line, IHF-A), 80 dB (Phono MM, IHF-A)

Video Section

• Input Sensitivity / Output Level and Impedance: 1.0 Vp–p / 75 Ohms (Component Y), 0.7 Vp–p / 75 Ohms (Component PB / CB, PR / CR), 1.0 Vp–p / 75 Ohms (Composite)
• Component Video Frequency Response: 5 Hz–100 MHz / +0 dB, -3 dB

Tuner Section

• Tuning Frequency Range: FM 87.5 MHz–107.9 MHz, AM 530 kHz–1,710 kHz
• FM / AM Preset Memory: 40 stations

General

• Power Supply: AC 120 V~, 60 Hz
• Power Consumption: 0.6 A
• No-Sound Power Consumption: 55 W
• Stand-by Power Consumption: 0.1 W
• Dimensions (W x H x D): 17 1/8˝ x 7 13/16˝ x 17 1/2˝ (435 x 199 x 444 mm)
• Weight: 29.8 lbs. (13.5 kg)
