FM/AM Stereo Receiver SA-5200ATechnics (brand)DATAFORUMPICTURESCOLLECTIONS

• Country
• Japan

• Manufacturer / Brand
• Technics (brand)

• Year
• 1974

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 154421

• PICTURE
• SCHEMATICS

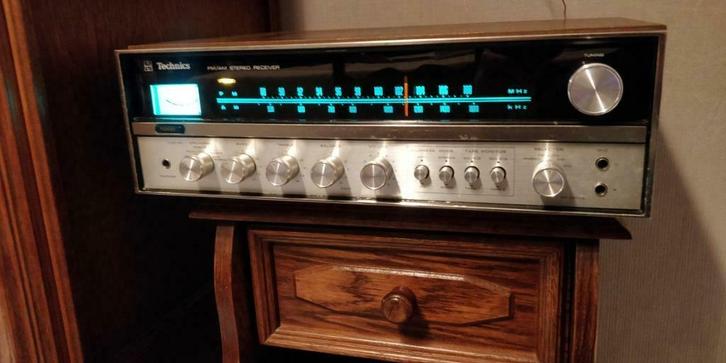

Technics brand FM/AM Stereo Receiver SA-5200A (1)
PreviousNext Technical Specifications

• Number of Transistors
• 35

• Semiconductors

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast (BC) and FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 220/240 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Power out
• 22 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org
• Model: FM/AM Stereo Receiver SA-5200A - Technics brand

• Shape
• Book-shelf unit.

• Dimensions (WHD)
• 390 x 310 x 130 mm / 15.4 x 12.2 x 5.1 inch

• Notes
• FM/AM Stereo Receiver with 11 watts RMS per channel into 8 ohms. SA5200A comprend un CI AN211B

• Net weight (2.2 lb = 1 kg)
• 8 kg / 17 lb 9.9 oz (17.621 lb)

• Price in first year of sale
• 220.00 $

FormFM / AM-stereo receiverMusic power (IHF)46W (4ohms)
37W (8ohms)Effective output (IHF)16W/16W (4ohms)
14W/14W (8ohms)Power Band Width7Hz-30kHz+1 -3 dBFrequency characteristic10Hz-50kHz+1 -3 dBTHD0.8%Cross modulation distortion1.0% (at the time of 60Hz:7kHz=4:1 and an effective output)SN ratio (IHF)Phono:70dB
Playback:90dBDumping factor30 (at the time of an 8-ohm load intensity) or moreInput sensitivity/impedancePhono: 3mV / 47kohm
Mic: 3mV / 47kohm
Tape Playback: 200mV / 30kohmOutput voltageRec out:200mVTone controlBass: +10dB--12dB (50Hz)
Treble: �}10dB (10kHz)Loudness control+ 12dB (50Hz), +5dB (10kHz)Received frequency76MHz - 90MHzSensitivity (IHF)1.9 microvoltsSelectivity (IHF)60dBSN ratio (IHF)65dBCapture ratio2.0dBImage stonewalling ratio40dBIF stonewalling ratio85dBAM supression ratio45dBStereo separation35dBTHD0.4%Received frequency520kHz - 1,610kHzSensitivity (IHF)20 microvoltsSelectivity20dBImage stonewalling ratio50dB(1,000kHz)The semiconductor usedIC: One piece
FET: One piece
Transistor: 38 pieces
Diode: 19 piecesPower sourceAC100V, 50/60HzPower consumption52WDimensionsWidth 410x height 135x depth of 358mmWeight8kg
