Beschrijving

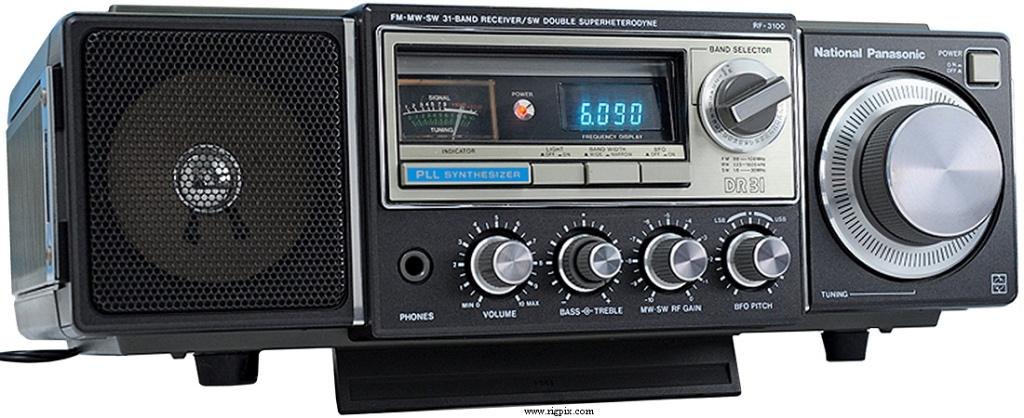

Te koop Panasonic RF-3100L prachtige toestel al nieuw zeer zeldzaam te vinden..SPECIFICATIONS
GENERAL
Type:
HF/VHF receiver
Frequency range:
LW:
0.15-0.41 MHz
MW:
0.52-1.61 MHz
SW:
1.6-30 MHz
FM:
87.5-108 MHz
Tuning steps:
Analog / continuous
Frequency stability:
? ppm
Mode:
AM / SSB / CW / WFM
Channels / memory management:
None
Power supply:
Mains:110-125 / 220-240 VAC
or 12VDC (Eight LR20 / D batteries)
Current drain / power consumption:
? mA @ 12 VDC
Antenna impedance / connector:
50-75 ohms / ? or built-in telescopic whip
Hi-Z / Spring terminals
Dimensions (W*H*D):
371*122*241 mm (14.61*4.8*9.49")
Weight:
3.2 Kg (7.06 lb)
Other features:
Digital blue flourescent display. Bass/treble controls. RF gain. BFO pitch.
RECEIVER SECTION
Receiver system:
Double conversion superheterodyne
1st IF: 10.695 MHz
2nd IF: 455 KHz
Sensitivity:
SSB: 0.5 uV (10 dB S/N)
Selectivity:
Image rejection:
AF output power / speaker:
? W at ?% distortion / ? ohm
External speaker connector:
MISCELLANEOUS
GENERAL
Type:
HF/VHF receiver
Frequency range:
LW:
0.15-0.41 MHz
MW:
0.52-1.61 MHz
SW:
1.6-30 MHz
FM:
87.5-108 MHz
Tuning steps:
Analog / continuous
Frequency stability:
? ppm
Mode:
AM / SSB / CW / WFM
Channels / memory management:
None
Power supply:
Mains:110-125 / 220-240 VAC
or 12VDC (Eight LR20 / D batteries)
Current drain / power consumption:
? mA @ 12 VDC
Antenna impedance / connector:
50-75 ohms / ? or built-in telescopic whip
Hi-Z / Spring terminals
Dimensions (W*H*D):
371*122*241 mm (14.61*4.8*9.49")
Weight:
3.2 Kg (7.06 lb)
Other features:
Digital blue flourescent display. Bass/treble controls. RF gain. BFO pitch.
RECEIVER SECTION
Receiver system:
Double conversion superheterodyne
1st IF: 10.695 MHz
2nd IF: 455 KHz
Sensitivity:
SSB: 0.5 uV (10 dB S/N)
Selectivity:
Image rejection:
AF output power / speaker:
? W at ?% distortion / ? ohm
External speaker connector:
MISCELLANEOUS
...
...
...
...
...
...
...
...
...
...
...
...
