Nakamichi 1000 & 1000P DAT Nakamichi 1000 General
Manufacturer: Nakamichi
Model: Model 1000 DAT
Type: DAT recorder
Years of manufacture: 1989 - 1995
Made in: Japan
Color: Silver
Remote control: yes, 1000r
Power consumption: 30 W
Dimensions: 435 x 133 x 370 mm (WxHxD)
Weight: 16 kg
Original price approx.: 23'000 DM (Nakamichi Model 1000 + Nakamichi Model 1000p)

Connections
Number of inputs:
Analog: 1x
Digital (Coaxial): 1x
Digital (Optical): 1x -15dBm to -24dBm

Number of outputs:
Analog: 1x 2V
Digital (Coaxial): 1x
Digital (Optical): 1x -18dBm

Technical Data
Drive: F.A.S.T. (stationary tape guide with fast tape access)
Heads: 4 (rotating head drum with 4 heads, for rear tape control)
Sampling frequency: 32 kHz, 44.1 kHz, 48 kHz
Tape speed: 8.15mm/s
D/A converter: 1bit
Frequency response: 2Hz - 22kHz
Dynamic range: >92dB
Signal to noise ratio: >93dB
Distortion factor: <0,005%
Index search: yes

Special Features
Pre- and rearband control
Digital fade in and out (fader)
Infrared remote control
Separate digital processor
Full metal housing

Approx. 16 kg

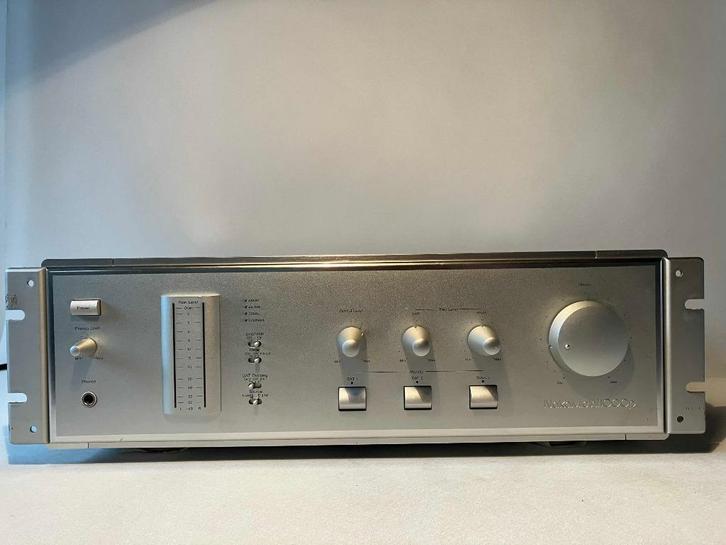

Nakamichi 1OOOP

General
Manufacturer: Nakamichi
Model: Model 1000p
Type: D/A converter
Years of manufacture: 1989 - 1995
Made in: Japan
Color: Silver
Remote control: yes, 1000r
Power consumption:
Dimensions: 435 x 133 x 370 mm (WxHxD).
Weight: 17,5 kg
Original price approx.: 23'000 DM (Nakamichi Model 1000 + Nakamichi Model 1000p)

Connections
Number of inputs:
Analog: 2x
Digital (Coaxial): 2x
Digital (Optical): 2x -15dBm to -24dBm

Number of outputs:
Analog: 1x 2V
Digital (Coaxial): 1x
Digital (Optical): 1x -18dBm
Headphone output: 20mW at 16Ohm

Specifications
Converter 20 bit, 8x oversampling, self-measuring
Frequency response at 48 kHz: 5-22 000 Hz (+/- 0.5 dB)
Signal-to-noise ratio 106 dB

Special Features
Fixed memory calibration system
Interference pulse blanking
Connection possibility for 2 DAT recorders 1000
Coaxial and opto digital interfaces
Digital double PLL interface with 2 speeds
32-segment LED peak value display

Approx. 17.5 kg



Remote Controller 1000r

The 1000r has the same layout as the operation panel of the Nakamichi1000, and eliminates the sense of discomfort in remote operation. In addition, the 1000r has most of the functions of the 1000 and can operate up to two 1000 independently.
Plus, when you order, you can choose between wired and wireless depending on what you're using.

There was a 1000 Professional (business model) with the exact same contents except for some specifications.
