Universal Audio Apollo Quad firewire +Thunderbolt 3 + Case

Nieuwprijs 3800 + 499 voor de thunderbolt 3 expansion en 250 voor de kist= €4549.

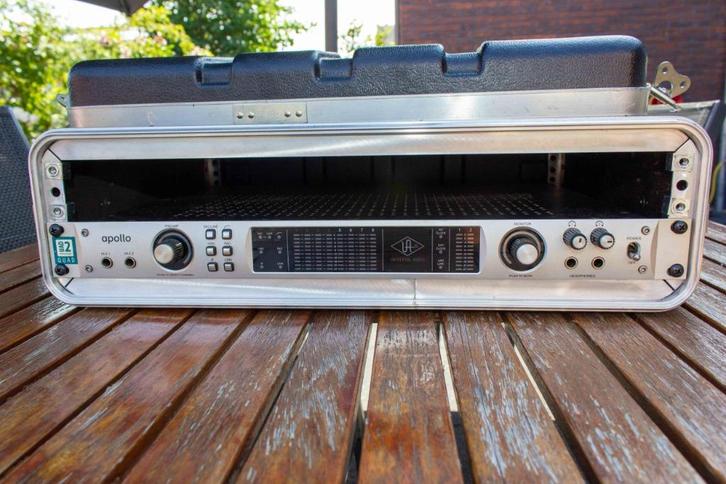

Universal Audio Apollo Quad firewire interface (+Thunderbolt 3 expansion) + flightcase (2U)

Key Features

• Worldwide standard in professional A/D and D/A conversion for music production
• Onboard UAD-2 QUAD Core DSP allows Realtime UAD Processing — record through plug-ins from Neve,

Lexicon, Studer, Marshall, Ampex, and more*

• 4 Unison-enabled mic preamps for tracking through preamp emulations from Neve, API, and Universal Audio*
• 18 x 24 FireWire audio interface for Mac and Windows
• Cascade two Apollos for 16 analog I/O channels and 12 digital I/O channels
• Includes “Realtime Analog Classics Plus” UAD plug-in bundle with 610-B Tube Preamp & EQ, Raw

Distortion, Softube Amp Rooms, legacy LA-2A, 1176, and Fairchild compressors, Pultec EQs, and more

• Upgraded to Thunderbolt 3 with expansion card
• World class UA analog design, superior components, and premium build quality
• All trademarks are recognized as property of their respective owners. Individual UAD Powered Plug-Ins sold separately.

Audio Interface

• Sample rates up to 192 kHz at 24-bit word length
• 18 x 24 simultaneous input/output channels:
• Eight channels of analog-to-digital conversion via mic, line, or high-impedance inputs
• 14 channels of digital-to-analog conversion via:
• Eight mono line outputs
• Stereo monitor outputs
• Two stereo headphone outputs
• 10 channels of digital I/O via:
• Eight channels ADAT Optical I/O with S/MUX for high sample rates
• Two channels coaxial S/PDIF I/O with sample rate conversion
• Two FireWire 800 ports for daisy-chaining other FireWire devices

Microphone Preamplifiers

• Four high-resolution, ultra-transparent, digitally-controlled analog mic preamps
• Front panel and software control of all preamp parameters
• Switchable low cut filter, 48V phantom power, pad, polarity, and stereo linking
• Unison™ technology for deep integration with UAD preamp and pedal plug-ins

Monitoring

• Stereo monitor outputs (independent of eight line outputs)
• Digitally-controlled analog monitor outputs maintains highest fidelity
• Front panel control of monitor levels and muting
• Two stereo headphone outputs with independent mix buses
• Independent front panel analog volume controls for headphone outputs
• Front panel pre-fader metering of monitor bus levels
• S/PDIF outputs can be set to mirror the monitor outputs

UAD-2 Inside

• QUAD Core DSP with four SHARC® processors
• Realtime UAD Processing on all of Apollo’s analog and digital inputs
• Same features and functionality as other UAD-2 devices when used with DAW
• Can be combined with other UAD-2 devices for increased mixing DSP
• Complete UAD Powered Plug-Ins library is available online

Software
Console application:

• Analog-style mixer for realtime monitoring and tracking with UAD plug-ins
• Enables Realtime UAD Processing
• DSP mixer for realtime monitoring and tracking
• Remote control of Apollo features and functionality
• Virtual I/O for routing DAW tracks through Console

Console Recall plug-in:

• Saves Console configurations inside DAW sessions for easy recall
• Convenient access to Console’s monitor controls via DAW plug-in
• VST, RTAS, AAX 64, and Audio Units plug-in formats

UAD Meter & Control Panel application:

• Configures global UAD settings and monitors system usage
