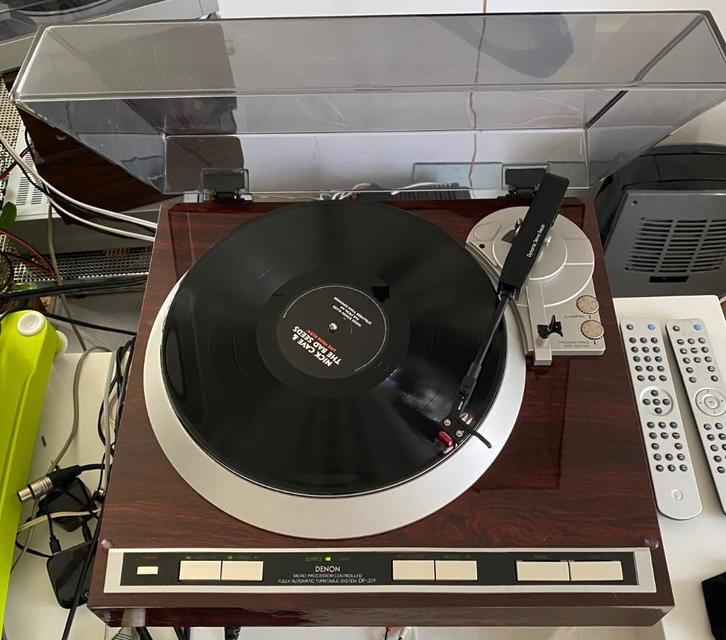

• Manufacturer: Denon
• Model: DP-37 F
• Year of manufacture: 1984 (- 1992)
• Made in: Japan
• Color: Black or Rosewood
• Power consumption: 8 (7) W
• Dimensions: 434 x 145 x 410 mm (WxHxD)
• Weight: 8,4 (7,5) kg
• Original price approx. 700 DM

Connections

• Outputs: 2,5 (1,6) mV
• Inputs: 220V / 50Hz

Technical data

• Drive: direct drive by linear drive servo motor
• Speed control: Speed servo control with frequency detection and quartz reference oscillator
• Motor: BLDC
• Speed:33 1/3 U/mim 45 U/min
• Synchronous speed variation: < 0.012% wrms
• Rumble noise ratio: 78 db (DIN B)
• Turntable: Die-cast aluminium, 300 mm
• Tonearm
• Effective length: 220 mm
• Design: straight, dynamically balanced
• Needle overhang: 16mm adjustable
• Tangential tracking error angle: < 3°.
• Adjustable support weight: 0 - 3 g
• System carrier: PCL-30

• Scanning system
• Drive (needle no.): MC (DL-110)
• Output voltage: 1.6 mV

Frequency range: 20 Hz - 45 kHz Recom. Recommended contact weight: 18 ± 3mN

• anti-skating device: ground terminal

Special Features

• Microprocessor-controlled contactless "Dynamic Servo Tracer" tonearm with Q-damping
• Quartz-controlled linear phono motor with dual controls

MC pickup with high output voltage that can be connected directly to the phono input of the amplifier
