Audio-Technica VM510CB element

VM510CB direct uit voorraad leverbaar, geen verzendkosten binnen Nederland en België

U kunt dit product eenvoudig bestellen via onze website.DUAL MOVING MAGNET STEREO CARTRIDGE WITH CONICAL STYLUS

• Conical Bonded stylus
• VM type dual magnet system
• Para-toroidal coils improve generating efficiency
• Aluminium cantilever
• Centre shield plate between stereo channels

Durable low resonance polymer housingPRODUCT FEATURES


• Conical Bonded stylus for less critical tilt angle adjustment allowing more flexible use on various tonearms.
• VM type dual magnet design ensures outstanding channel separation, extended frequency response and superb tracking
• Lightweight tapered aluminium cantilever allows for faithful reading of the record groove
• Centre shield plate enables the effective separation of left and right channels, suppressing electrical crosstalk to below 40dB
• Durable low resonance polymer housing

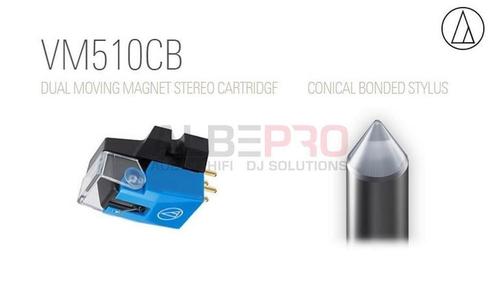

 VM510CBDUAL MOVING MAGNET STEREO CARTRIDGE
Entry-level VM cartridge model equipped with a conical bonded stylus. The round stylus is less likely to be affected by placement and boasts stable tracing performance.

• Aluminium cantilever
• Para-toroidal coils improve generating efficiency
• Centre shield plate between the left and right channels reduces crosstalk
• Durable low resonance polymer housing

TypeVM TypeMounting1/2” centres
Frequency Response20 - 20,000Hz
Channel Separation25dB (1kHz)
Output Channel Balance1.5dB (1kHz)
Output Voltage5.0mV (1kHz, 5cm/sec.)
Vertical Tracking Angle23˚
Vertical Tracking Force Range1.8 – 2.2g (2.0g standard)
Stylus ShapeConical BondedStylus Size0.6 mil
Stylus ConstructionBonded Round Shank
CantileverAluminium Pipe
Coil Impedance2,700Ω (1kHz)
Static Compliance35 x 10-6 cm/dyne
Dynamic Compliance8 x 10-6 cm/dyne (100Hz)
Recommended Load Impedance47,000Ω
Recommended Load Capacitance100 – 200pF
Weight6.4g
Dimensions17.3 (H) x 17.0 (W) x 28.2 (L) mm
Replacement StylusVMN10CB
Accessories
IncludedCartridge installation screws 5mm ×2 and 10mm ×2, Washer ×2, Hexagon nut ×2
