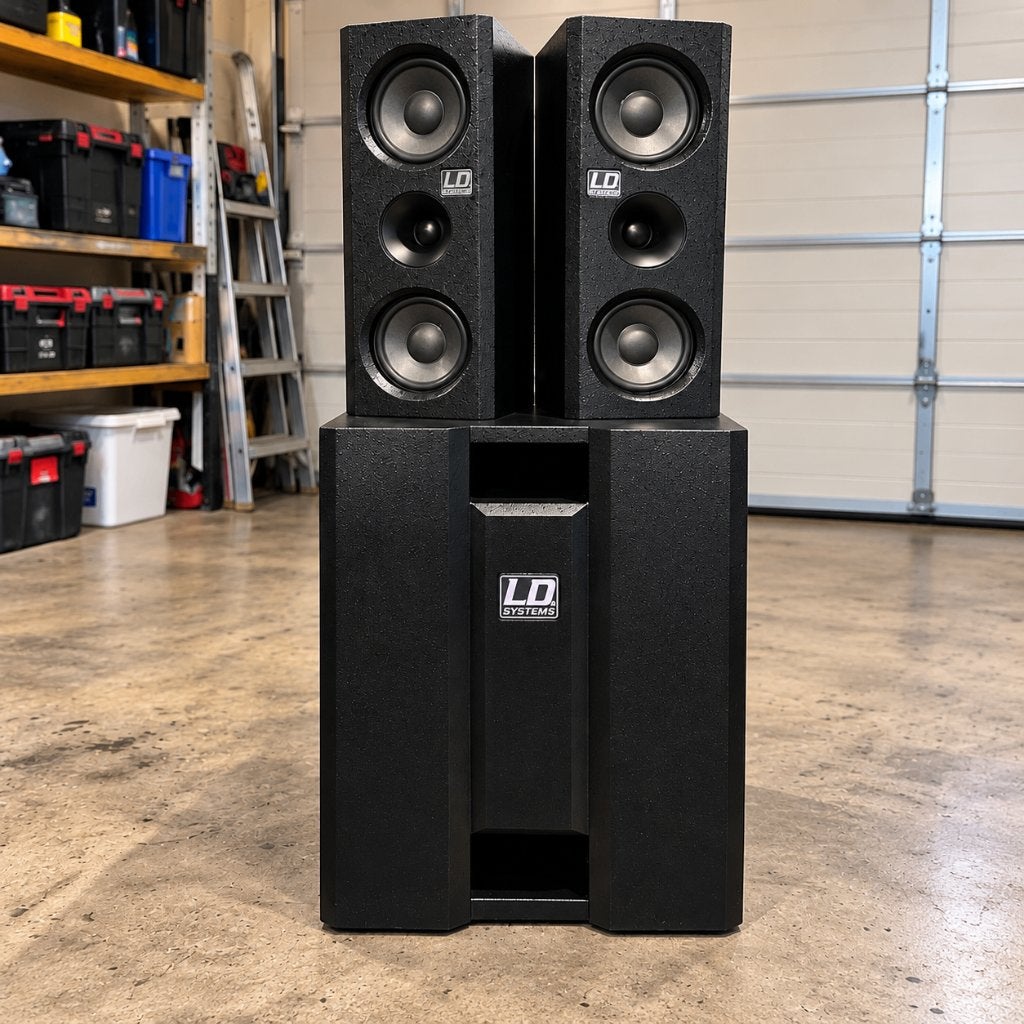

Compact Professioneel PA/Media Systeem

Algemene informatie

• 1x Actieve Bandpass Subwoofer met 1x 8" Speaker en 2x 4"/1" Satellieten
• Systeemvermogen: 150W Sub + 2x 100 W Top
• Frequentie-bereik: 45 - 19.000 Hz
• Geluidsdruk: 117 dB SPL max
• Aansluiting: XLR/Jack en Cinch Inputs, Speakon out
• 180° Phase reverse
• Maten Subwoofer: 352 x 430 x 434 mm
• Gewicht Subwoofer: 18 kg
• Maten Satellieten: 144 x 350 x170 mm
• Gewicht Satelliet: 4,5 kg
• Zwarte behuizing
• Incl. Stroomkabel

Subwoofer
Size of woofer: 8 "Size of woofer: 203.2 mmWoofer magnet: ferriteWoofer brand: Custom MadeEnclosure type: bandpassEnclosure material: 15 mm MDFEnclosure surface: textured paintSubwoofer width: 352 mmSubwoofer height: 430 mmSubwoofer depth: 434 mm
Mid/Hi System
Size of midrange driver: 2 x 4 "Size of midrange driver: 2 x 101.6 mmMidrange driver magnet: ferriteMidrange driver brand: Custom MadeSize of tweeter: 1 "Size of tweeter: 25.4 mmTweeter magnet: ferriteTweeter brand: Custom MadeMid/Hi System impedance: 4 OhmsSpeaker inputs: 1Speaker input connectors: Speakon CompatibleMid/Hi System enclosure type: closedMid/Hi System enclosure material: 12 mm MDFMid/Hi System enclosure surface: textured paintMid/Hi System width: 144 mmMid/Hi System height: 350 mmMid/Hi System depth: 170 mmMid/Hi System features: 16 mm flange, 2 x M6 mounting points for wall mounting


Amplifier Module (Integrated in Subwoofer)
Amplifier: Class A/B (BiAmp)Amplifier power system (RMS): 350 WAmplifier power system (Peak): 1400 WProtective circuits: short-circuit, limiter, overloadCooling: aluminum heat sinkControls: volume, subwoofer volume, power switch (On/Off), subwoofer phase reverseIndicators: powerPower supply: transformerOperating voltage: 220 V AC - 240 V AC, 50 - 60 HzLine inputs: 2 (Left/Right)Line input connectors: 6.3 mm jack, RCA, XLRSpeaker outputs: 2 (Left/Right)Speaker output connectors: Speakon Compatible
