Kenmerken
Beschrijving

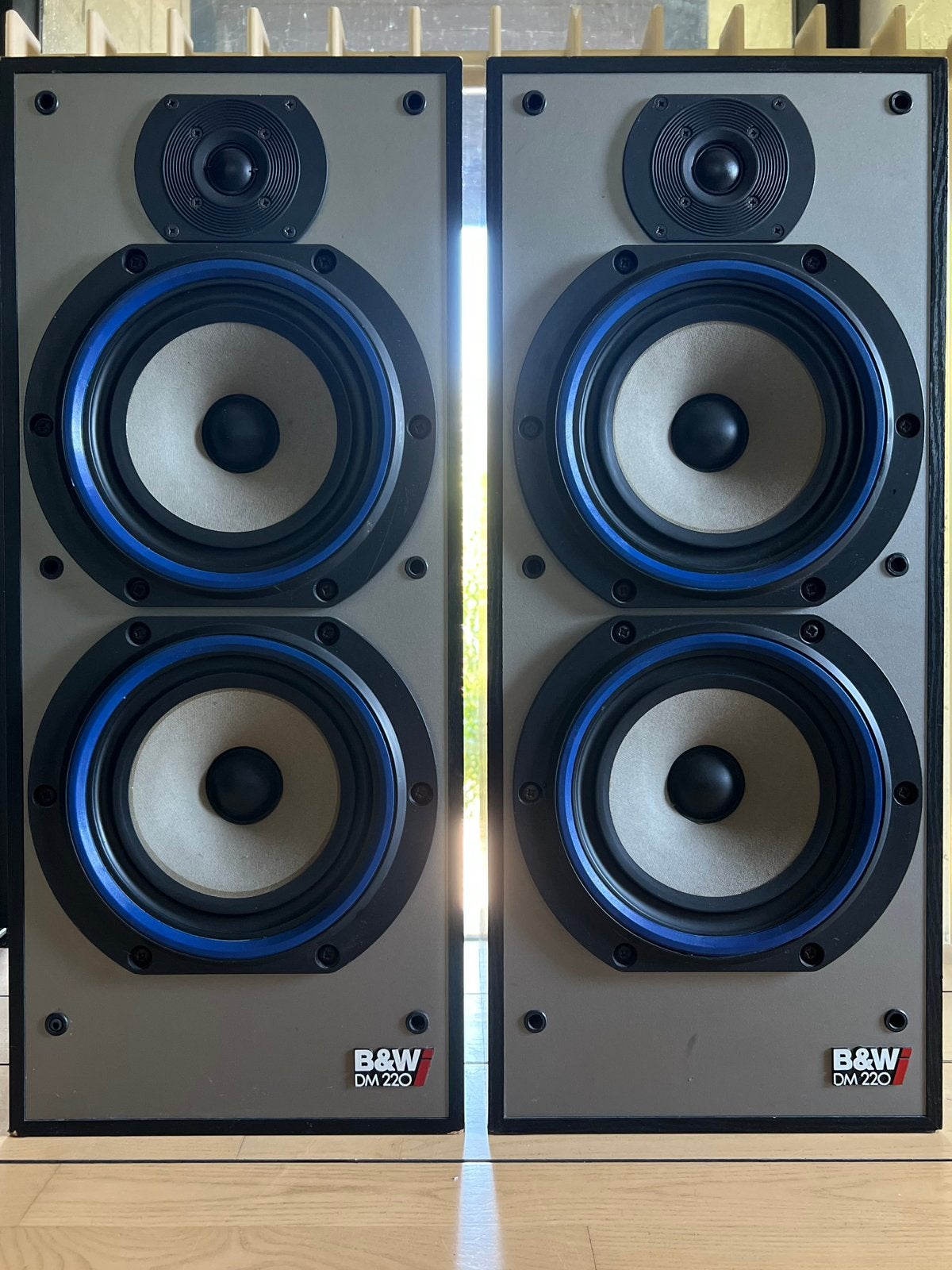

Een overeenkomstig paar originele B&W DM220i.
Ontworpen en geproduceerd in Engeland in de late jaren ´80.
Typische warme klank.
Technisch 100% in orde met enkele mineure beschadigingen aan de hoeken vzn de behuizing.
Een van de grills is beschadigd.
DM220i
Stand-mount/Bookshelf loudspeaker system
Product Summary
● The total spectrum capability pop, jazz, rock, classical. Features all the distinctive qualities of the smaller models with a third driver extending both frequency response and power
handling.
● Super sensitive, with high acoustical output yet affordable.
Technical highlights
● Modal analysis techniques revealed a simple bonding technique of corner joints could improve rigidity and reduce coloration.
● New thinking on crossover design has also led to the provision of higher safe power handling and fuse protection overload.
● The driver chassis have non-magnetised castings for all the bass midrange units ensuring resonant free high-level sound of the highest amplitude.
Frequency Response 53Hz to 20kHz
Drive Units
1 x 26mm high-frequency driver with
dome/coil construction of special
polymide material
2 x 200mm nominal piston dia and
26mm high temperature voice coil with
critically impregnated composite short
fibre cone
Sensitivity 90dB spl (2.83V, 1m)
Power Handling 10W – 100W
Dimensions Height: 680mm Width: 290mm
Depth: 320mm
FinishAmerican Black Ash
Ontworpen en geproduceerd in Engeland in de late jaren ´80.
Typische warme klank.
Technisch 100% in orde met enkele mineure beschadigingen aan de hoeken vzn de behuizing.
Een van de grills is beschadigd.
DM220i
Stand-mount/Bookshelf loudspeaker system
Product Summary
● The total spectrum capability pop, jazz, rock, classical. Features all the distinctive qualities of the smaller models with a third driver extending both frequency response and power
handling.
● Super sensitive, with high acoustical output yet affordable.
Technical highlights
● Modal analysis techniques revealed a simple bonding technique of corner joints could improve rigidity and reduce coloration.
● New thinking on crossover design has also led to the provision of higher safe power handling and fuse protection overload.
● The driver chassis have non-magnetised castings for all the bass midrange units ensuring resonant free high-level sound of the highest amplitude.
Frequency Response 53Hz to 20kHz
Drive Units
1 x 26mm high-frequency driver with
dome/coil construction of special
polymide material
2 x 200mm nominal piston dia and
26mm high temperature voice coil with
critically impregnated composite short
fibre cone
Sensitivity 90dB spl (2.83V, 1m)
Power Handling 10W – 100W
Dimensions Height: 680mm Width: 290mm
Depth: 320mm
FinishAmerican Black Ash
...
...
...
...
...
...
...
...
...
...
...
...
