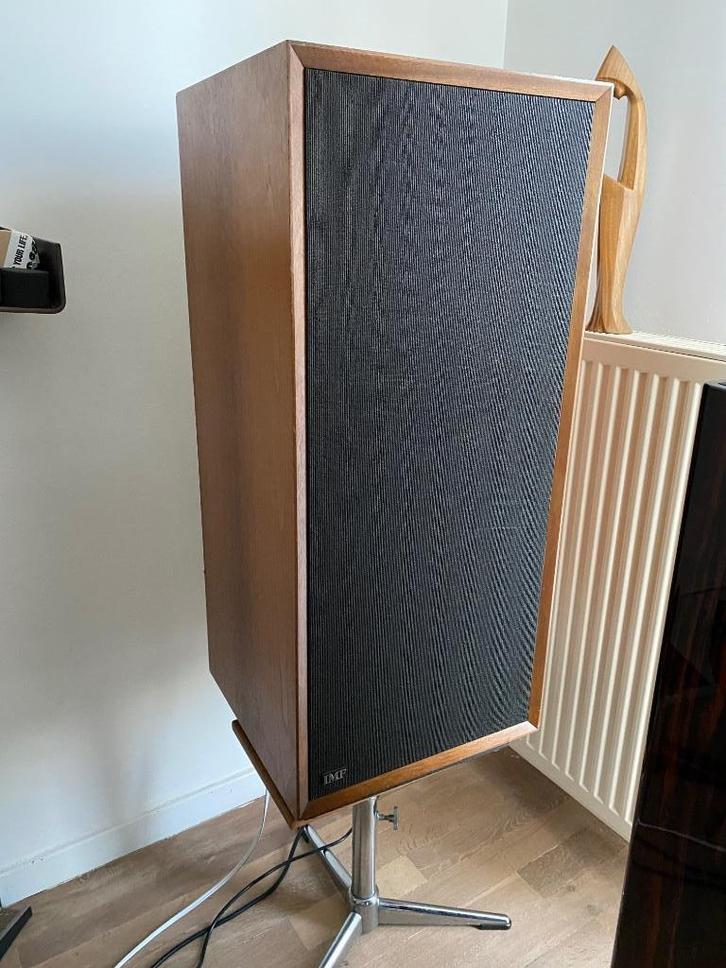

IMF TLS50 - big loudspeaker (ex BBC choice)
The IMF 'TLS' are advanced versions of the transmission line reproducer which was developed some years ago to aid in laboratory research. They incorporate the latest and most refined drive systems enclosed in new and radically re-designed transmission lines. These speakers are for use with the best equipment. A 'TLS' is a sophisticated speaker; its virtues will not be apparent to the novitate who will want something more obvious. lt will be most appreciated by the cognoscenti.
The crossover points have been carefully chosen to preserve homogeneity and to maintain smooth impedance curves. The 'left' speakers have their mid and high units grouped at the right side; the 'right' speakers have them on the left side. The purpose is to provide a carefully controlled dispersion pattern inward and away from room boundaries so that the maximum of direct information and the minimum of reflected reaches the listener.
No cost cutting or production compromises have been applied to the TLS; the entire concept has been preserved as one of performance at any price rather than to a price. Were there better drive systems, enclosure techniques or construction methods, they would have been incorporated.
THE STUDIO TLS 5O LOUDSPEAKER
A free standing loudspeaker system measuring approximately 36" x 14" x 15' wide. Bass unit S' foam surround impregnated diaphragm, mid - range 5" impregnated cone contained in separate line, tweeter 1 1/8" soft dome and 3/4" chemical dome super-tweeter. Crossover electrical four way at approximately 375Hz, 3kHz and 13kHz. Frequency range 23Hz to beyond audibility. Calibrated level controls - 2dB for mid and high frequencies. Efficiency measured via pink noise 1 metre on axis : 50 watts produces 100dB. Nominal impedance 8 ohms. Driving power requirement 25 to 60 watts. Supplied in matched 'mirrorimage' pairs in teak or walnut
Distortion ref. 90 dB at 1 kHz
Studio TLS 50
Harmonic 2nd 3rd
40 Hz 0.25 % 0.03 %
100 Hz 1.0 % 0.15 %
500 Hz 0.15 % 0.06 %
1 kHz 0.15 % 0.05 %
5 kHz 0.12 % 0.04 %
10 kHz 0.8 % 0.03 %
The IMF 'TLS' are advanced versions of the transmission line reproducer which was developed some years ago to aid in laboratory research. They incorporate the latest and most refined drive systems enclosed in new and radically re-designed transmission lines. These speakers are for use with the best equipment. A 'TLS' is a sophisticated speaker; its virtues will not be apparent to the novitate who will want something more obvious. lt will be most appreciated by the cognoscenti.
The crossover points have been carefully chosen to preserve homogeneity and to maintain smooth impedance curves. The 'left' speakers have their mid and high units grouped at the right side; the 'right' speakers have them on the left side. The purpose is to provide a carefully controlled dispersion pattern inward and away from room boundaries so that the maximum of direct information and the minimum of reflected reaches the listener.
No cost cutting or production compromises have been applied to the TLS; the entire concept has been preserved as one of performance at any price rather than to a price. Were there better drive systems, enclosure techniques or construction methods, they would have been incorporated.
THE STUDIO TLS 5O LOUDSPEAKER
A free standing loudspeaker system measuring approximately 36" x 14" x 15' wide. Bass unit S' foam surround impregnated diaphragm, mid - range 5" impregnated cone contained in separate line, tweeter 1 1/8" soft dome and 3/4" chemical dome super-tweeter. Crossover electrical four way at approximately 375Hz, 3kHz and 13kHz. Frequency range 23Hz to beyond audibility. Calibrated level controls - 2dB for mid and high frequencies. Efficiency measured via pink noise 1 metre on axis : 50 watts produces 100dB. Nominal impedance 8 ohms. Driving power requirement 25 to 60 watts. Supplied in matched 'mirrorimage' pairs in teak or walnut
Distortion ref. 90 dB at 1 kHz
Studio TLS 50
Harmonic 2nd 3rd
40 Hz 0.25 % 0.03 %
100 Hz 1.0 % 0.15 %
500 Hz 0.15 % 0.06 %
1 kHz 0.15 % 0.05 %
5 kHz 0.12 % 0.04 %
10 kHz 0.8 % 0.03 %
...
...
...
...
...
...
...
...
...
...
...
...
