Beyma HAUT-PARLEUR AL-15″ KX CO-AXIAL 8 OHM 300/100Watts
€ 175,00
Ophalen of Verzenden
Thuisbezorgd via Bpost voor € 8,30
630sinds 28 mar. '25, 17:09
Kenmerken
Beschrijving

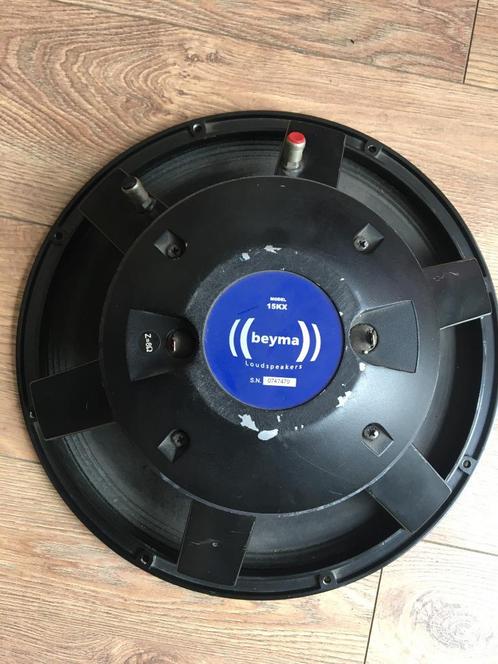

Beyma HAUT-PARLEUR AL-15″ KX CO-AXIAL 8 OHM 300/100Watts.
En parfait état de fonctionnement
Caractéristiques technique
Constructif
En parfait état de fonctionnement
- Puissance admissible BF/HF: 300/100 W AES
- Sensibilité BF/HF: 99/105 2.83 @ 1 m @ 2?
- Diamètre Bobine BF/HF: 77/72 mm - 3/2.9 in
- Marque: Beyma
Caractéristiques technique
- Impédance Nominale BF/HF8/8 ohm
- DIAMETRE (in)380 mm 15 in
- Impédance minimum BF/HF7.3/6.5 ohm
- GAMME FREQ. (Hz)35-20000 Hz
- PUISSANCE LF/HF (W AES)300/100 W AES
- Puissance Programme BF/HF600 /200 w
- SEN. LF/HF (dB 2.83V-1m)99/105 2.83 @ 1 m @ 2?
- COUPURE (Hz - 12dB/Oct.)1.2 kHz ou plus (12dB/oct pente minimum)
- DIAM. BOBINE LF/HF (in)77/72 mm - 3/2.9 in
- DISPERSION (§)80º
- Facteur BL7.5 N/A
- Masse mobile0.070 kg
- Hauteur de Bobine13 mm
- Déplacement Maximum pp28 mm Thiele & Small
- Fs (Hz)45 Hz
- Re5.68 ohm
- Qms11.46
- Qes0.519
- Qts0.496
- Vas (l)203 l
- Cms188.4 µm / N
- Rms1.69 kg/s
- Efficacité %3.18
- Sd0.088 m²
- Xmax (mm)3.5mm
- Vd300 cm³
- Inductance @ 1kHz (Le@1kHz)0.66mH
Constructif
- POIDS NET (kg)8.25 kg 18.19 lb
- Poids total (g)9.25 kg 20.4 lb
- AIMANFerrite
