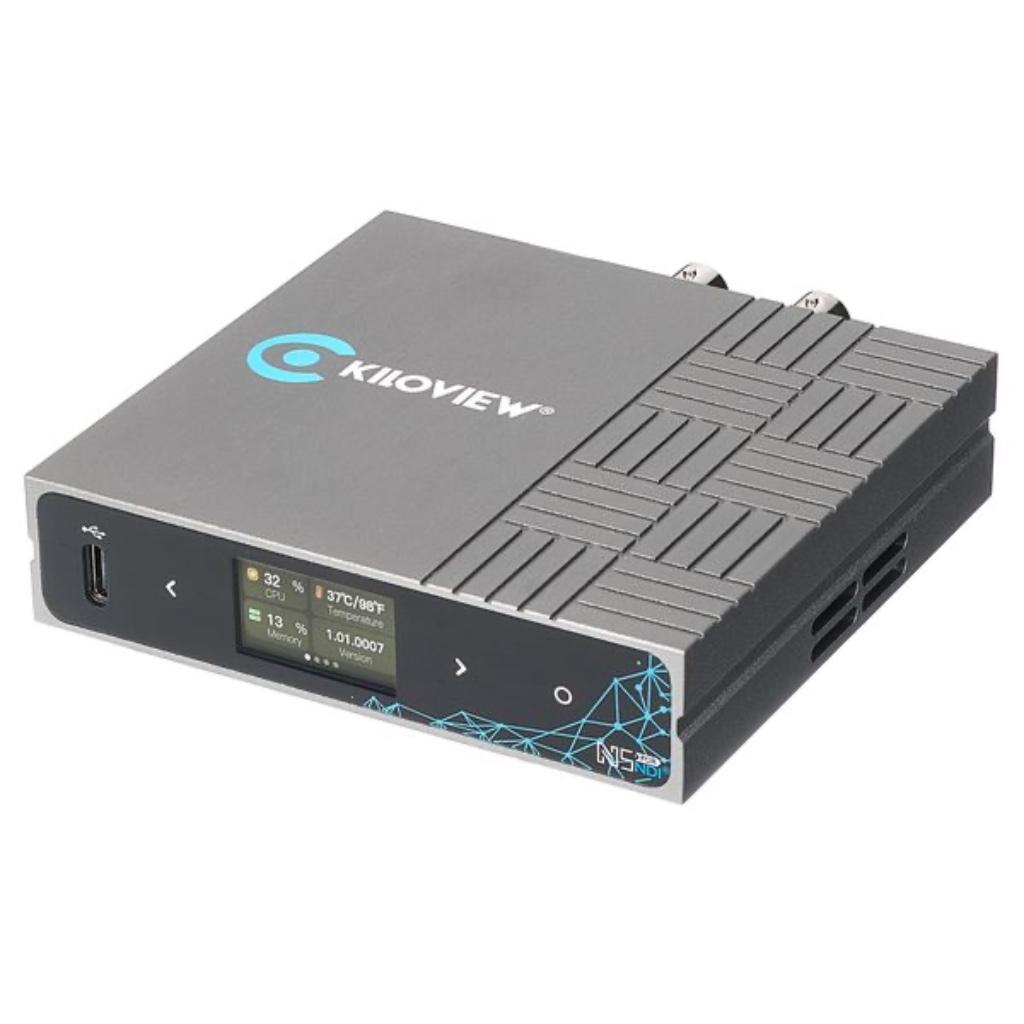

Bidirectional 3G-SDI/NDI Converter

• Converts from 3G-SDI input (encoder) to NDI and NDI|HX with loop-through for display on a monitor or from NDI and NDI|HX to 3G-SDI video output (decoder)
• Powerful features like PoE
• Built-in large tally light
• PTZ control
• 3.5 mm audio input and output
• Multi-channel audio
• Intercom functions
• Based on NDI SDK 5.0, which can handle both NDI and NDI|HX (encoding and decoding)
• NDI 5 enables connection to any device anywhere in the world

Technical data:

• Video input: 1x 3G-SDI
• Video output: 1x 3G-SDI (loop or decoding output)
• Audio connection: 1x 3.5 mm line-in, 1x 3.5 mm line-out, 1x 3.5 mm microphone
• Network: 1x RJ45 1000Mbps Ethernet port (with PoE)
• Video resolution: 1920x1080P23/24/25/50/59/59.94/60, 1280x720p30/50/59/60, 1280x1024P60, 1152x900P60, 1152x864P60, 1024x768P60, 800x600P60
• NDI codec capacity: 1x FULL NDI and 1x NDI|HX
• NDICODEC function: FULL NDI HD coding
• Typical bit rate: 125 Mbps at 1080p60
• PTZ control: network PTZ and serial interface
• DHCP: Support
• Management via website
• Power supply: PoE, DC
• D-Tap (camera) connector
• Input voltage 5 - 18 V
• Power consumption: 6 W
• Dimensions: 100 x 80 x 24 mm
• Weight: 272 g
