Easa-Phone KX-T1450 - Panasonic antwoordapparaat Vintage

Radiomuseum

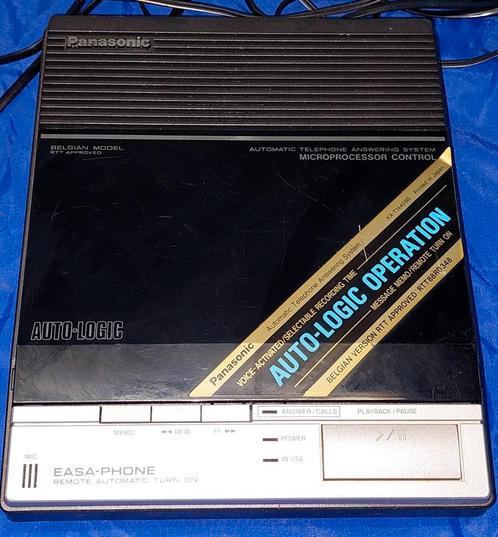

Easa-Phone KX-T1450

Panasonic, Matsushita, National ナショナル (also tubes); Osaka

Country

Japan

Manufacturer / Brand

Panasonic, Matsushita, National ナショナル (also tubes); Osaka

Year

1990 ??

Category

Sound/Video Recorder and/or Player

Radiomuseum.org ID

285625


Schematics



Panasonic, Easa-Phone KX-T1450 (1)

PreviousNext

 Technical Specifications

Number of Transistors

8

Semiconductors



Main principle

Audio-Amplification

Wave bands

- without

Details

Cassette-Recorder or -Player

Power type and voltage

Powered by external power supply or a main unit. / DC: 12 Volt

Loudspeaker

Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 cm = 1.6 inch

Material

Plastics (no bakelite or catalin)

from Radiomuseum.org

Model: Easa-Phone KX-T1450 - Panasonic, Matsushita,

Shape

Tablemodel without push buttons, Mantel/Midget/Compact up to 14

Dimensions (WHD)

170 x 50 x 220 mm / 6.7 x 2 x 8.7 inch

Notes

Easa-Phone KX-T1450 von Panasonic ist ein Telefon Anruf-Beantworter.

Dual Standard Cassette / Tone Remote Control - Auto Logic.
Double cassette: The first for answering message, the second to record phone calls.
Recorded calls can be listened to by calling the line on which the device is connected, by entering a special code.
Transistors listed one per type. 4 ICs not listed and 7 diodes.
Power supply by Panasonic AC Adaptor KXA11
