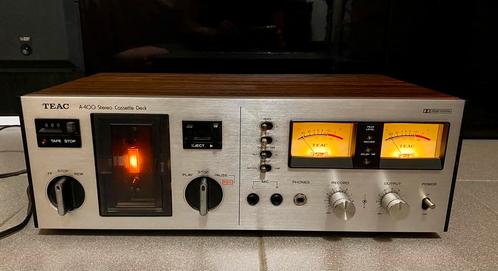

TEAC A-400 Stereo Cassette Deck (1975)

Description
Features of the TEAC A-400 include an exclusive vertical transport system, mechanically interlocked twin rotary lever controls, dolby noise reduction, DC servo-controlled motor, individual dual position bias and equalization selectors, two large VU-type loudness meters, peak reading LED level indicator, individual input and output level controls and an automatic stop function.

Specifications
Type: 2-head, single compact cassette deck

Track System: 4-track, 2-channel stereo

Tape Speed: 4.8 cm/s

Heads: 1 x record/playback, 1 x erase

Motor: DC servo

Tape Type: type I, CrO2

Noise Reduction: B

Frequency Response: 30Hz to 16kHz (Cr02 tape)

Signal to Noise Ratio: 60dB (dolby B)

Wow and Flutter: 0.08%

Input: 60mV (line), 0.25mV (mic)

Output: 0.775V (line)

Dimensions: 155 x 440 x 285mm. Kan getest en beluisterd worden na gezien en riempjes vervangen knopen gereinigd werkt perfect klaar voor nieuwe eigenaar 😊
