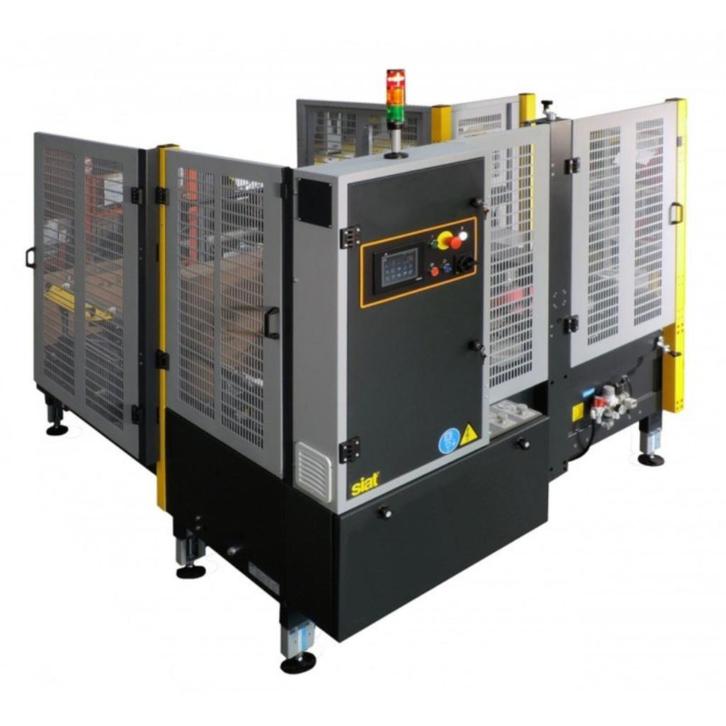

Key features

• Box storage for 150 boxes
• Box storage available on left side (SX) or right side (DX)
• Output up to 1100 boxes/hour
• 2 carriages activated by electric axis (FESTO) with suction cups to take cartons from the boxes storage, to fold and to take them away by frive belts (2 motors kW 0,65 each) for the bottom flaps folding & sealing
• K11R taping unit - 50 mm width
• BECKER vacuum system
• Control panel equipped with: touchscreen panel with trouble shooting, automatic "0" setting up, suction cups carriages speed adjustment, box counter - box timer, low box storage alarm, low brake/end tape alarm, full line alarm after the machine
• Safety protections with switches to disconnect electric & pneumatic circuits if opened
• OMRON PLC

F346
Box dimensions
Min. L 300 mm W 200 mm H 220 mmMax. L 620 mm W 400 mm H 450 mm


KAN OOK KLEINERE DOZEN PLOOIEN!!!
