Scanner Bearcat UCB 760 xlt met of zonder discriminator

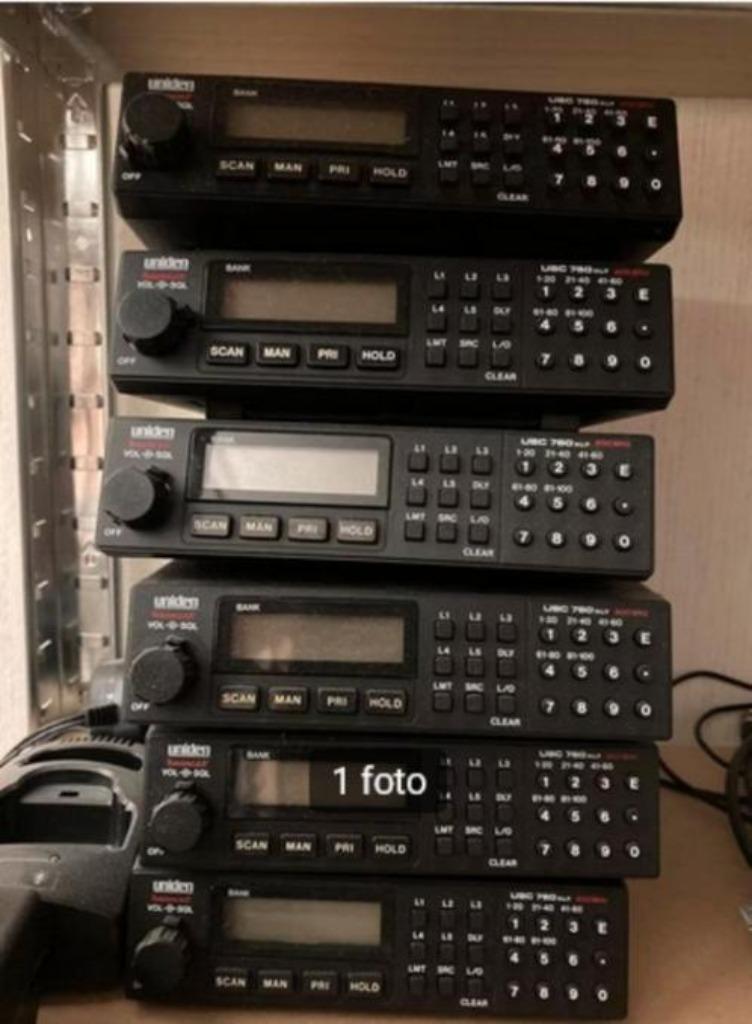

Scanner Bearcat UBC 760 xlt

Nog 5 stuks op voorraad. Inclusief adapter.
€120,- per stuk.
Met discriminator uitgang €150,-

SPECIFICATIONS GENERAL
Type:VHF/UHF receiver/scanner Frequency range:66-88 / 108-174 / 350-512 / 806-956 MHz
Tuning steps:VHF: 5 KHz
UHF: 5 / 12.5 KHz
AM / FM Channels / memory management: 100 regular in five banks @ 15 channels per second
5 search limit pairs
1 priority
RAM storage with lithium battery backup
Power supply:13.8 VDC (Barrel connector, center positive)
Antenna impedance / connector:50 ohm / BNC
Dimensions (W*H*D):165*45*200 mm (6.49*1.77*7.87") Weight:950 g (2.09 lb)



RECEIVER SECTION Receiver system: Double conversion superheterodyne
1st IF: 10.85 MHz
2nd IF: 450 KHz - Ceramic filter: Murata SFR450D Sensitivity:
AM (10 dB S/N) 108-136 MHz: 0.6 uV
FM (12 dB SINAD)
66-88 MHz: 0.3 uV
136-174 MHz: 0.4 uV
406-512 MHz: 0.4 uV
806-956 MHz: 0.8 uV Selectivity:20 KHz (-6 dB)
40 KHz (-50 dB)
AF output power / speaker:2 W at 10% distortion / 8 ohm
External speaker connector: 3.5 mm
